Hardwired, interconnected smoke alarms are far more reliable at alerting occupants than standalone units. When one alarm senses smoke, all connected alarms sound. But that only happens if the interconnect wire, the circuit, and the connections are done right. Get any of those wrong, and you've got a false sense of security bolted to your ceiling.
This guide walks through the full wiring process step-by-step: what materials you need, the variables that determine whether the system actually works, the mistakes that trip up even careful DIYers, and when it's time to call a licensed electrician instead.
TL;DR
- Hardwired detectors use 120V power, battery backup, and a 3-wire interconnect so every unit alarms together.
- Connect black-to-black, white-to-white, red-to-red (interconnect), and ground-to-ground.
- Use 14/3 NM-B, kill power first, and keep this circuit off GFCI protection.
- A single add-on can be DIY for confident homeowners; whole-home installs need a licensed electrician.

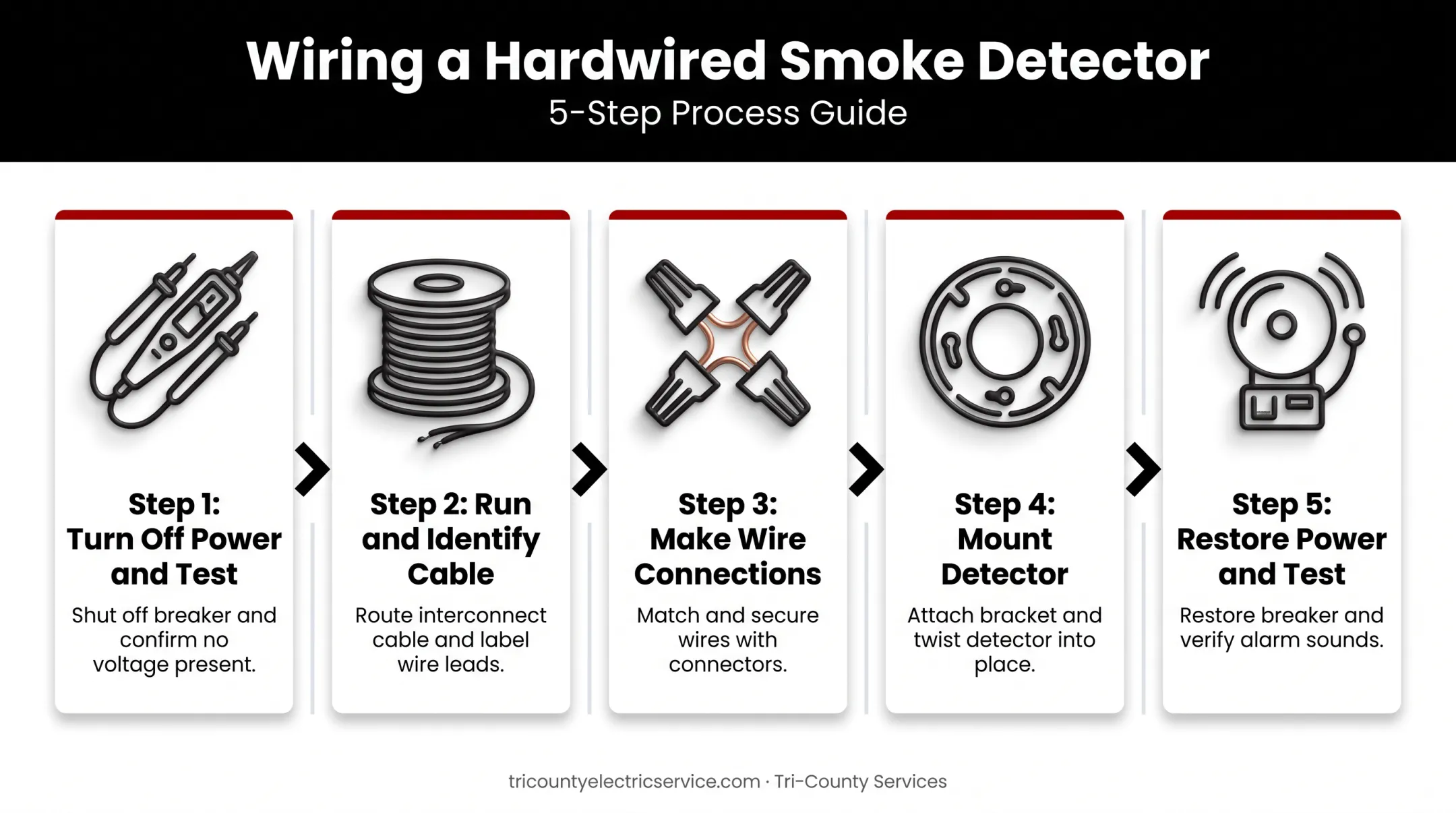

How to Wire Smoke Detectors: Step-by-Step
Step 1: Turn Off Power and Prepare
Shut off the breaker feeding the circuit, then verify zero voltage with a non-contact voltage tester before touching any wires. Never trust the breaker label alone. Test it.
Check that the electrical box is ceiling-rated and secured to a joist or an approved bracket. A loose or non-rated box is a common reason detectors fall or disconnect over time.
Step 2: Run and Identify the Cable
Run 14/3 NM-B cable from the panel (or from the previous alarm in the loop) to each detector location, leaving extra slack at every box for future service work.

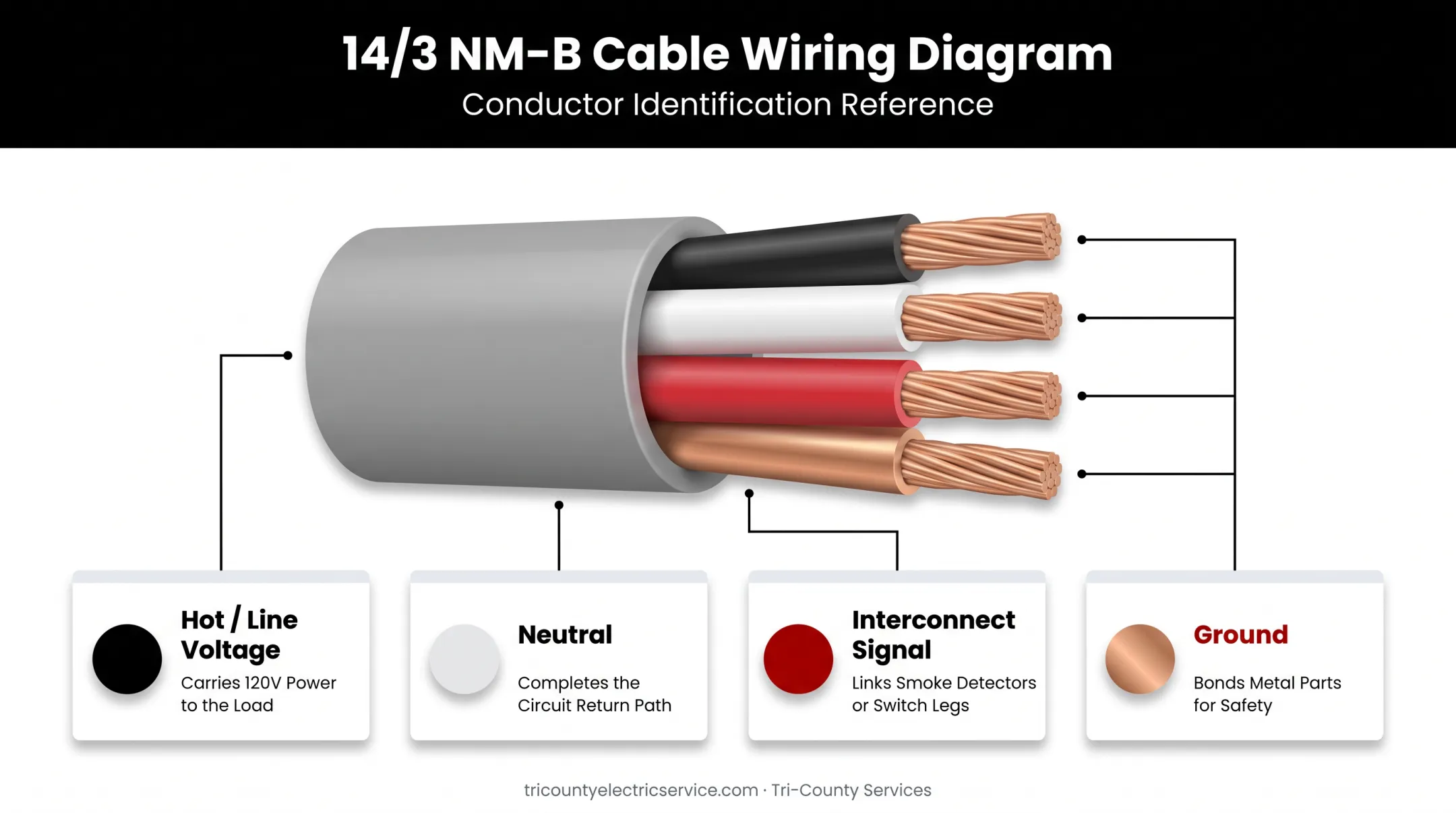

You'll typically find four conductors in the cable:
- Black – hot (line voltage)
- White – neutral
- Red – interconnect (signals other alarms)
- Bare copper – ground
Note: some manufacturers, like First Alert, use orange for the interconnect wire instead of red. Always check the installation manual for your specific model before assuming color means function.
Step 3: Make the Wire Connections
Connect conductors by matching colors: black-to-black, white-to-white, red-to-red, ground-to-ground. Use twist-on wire connectors, not push-in connectors, which can loosen over time and cause intermittent chirping or failure.
The interconnect wire is the one people get wrong most often. It carries a signal (not full line voltage) that tells other alarms in the loop to sound. Never connect it to a hot or neutral line. Doing so can fry the alarm's internal circuit board and take out the whole interconnect chain.
Step 4: Mount and Connect the Detector
Attach the mounting bracket to the electrical box, plug in the wiring harness to the detector, then twist the unit onto the bracket until it locks into place. Don't force it. If it doesn't seat cleanly, the harness connection may be misaligned.
Step 5: Restore Power and Test
Turn the breaker back on and press the test button on one unit. Every interconnected alarm in the loop should sound within a few seconds. If they don't, stop and troubleshoot before considering the job done. If the interconnect still fails, you're unsure about the panel work, or local code requires a permit, call a licensed electrician rather than re-energizing a faulty loop.
When Should You Wire Smoke Detectors Yourself vs. Hire a Pro?
Wiring smoke detectors isn't always a simple weekend project, especially in older homes.
Manageable for handy homeowners:
- Adding a single detector to an existing interconnect loop
- Replacing a like-for-like unit on wiring that's already in good shape
- Swapping same-system units when existing boxes and cable are sound
Better left to a licensed electrician:
- Whole-home rewiring or new construction
- Homes with no existing smoke detector wiring
- Any situation where code compliance is required for inspection or resale
Older homes often have wiring that doesn't match modern conventions, undersized or overfilled boxes, or circuits shared with other fixtures. Those conditions make a clean interconnect harder than it looks.
Tri-County Services' licensed electricians handle these installations across Northeast Ohio, including whole-home rewiring and code corrections when a system needs to meet current standards.
What You Need Before Wiring Smoke Detectors
Having the right materials and tools on hand prevents mid-project trips to the hardware store and rework later.
Materials:
- Hardwired smoke detectors (interconnect-compatible if linking multiple units)
- 14/3 NM-B cable with ground
- Twist-on wire connectors
- Ceiling-rated electrical box
Tools:
- Non-contact voltage tester
- Wire strippers
- Screwdrivers
Skill and safety readiness:
- Comfort working with 120V circuits
- Familiarity with your local electrical code
- Confirmation that the breaker is properly labeled before you start
If any of these feel uncertain, bring in a licensed electrician rather than guess.
Key Wiring Parameters That Affect Results
A few wiring choices determine whether the finished system works as designed.
Interconnect Wire (Red Conductor)
This wire is what allows every alarm in the loop to sound simultaneously when one detects smoke. A broken or miswired interconnect means only the triggered alarm sounds. Everyone else in the house stays asleep.
Circuit Type (No GFCI, Dedicated Supply)
Smoke alarm manuals commonly require:
- An unswitched, 24-hour 120VAC supply
- No switch, dimmer, or GFCI on the circuit
GFCI protection can cause nuisance trips that disable the alarm without warning. Confirm your model's circuit requirements and check with your local code official—NEC treatment of alarm circuits can vary by jurisdiction.
Brand Consistency Across the Loop
Manufacturers don't test or certify their alarms to interconnect with competitors' products. Kidde, for instance, only guarantees compatibility within its own listed product families. Mixing brands can cause silent failures: the alarms look fine, but they don't talk to each other.

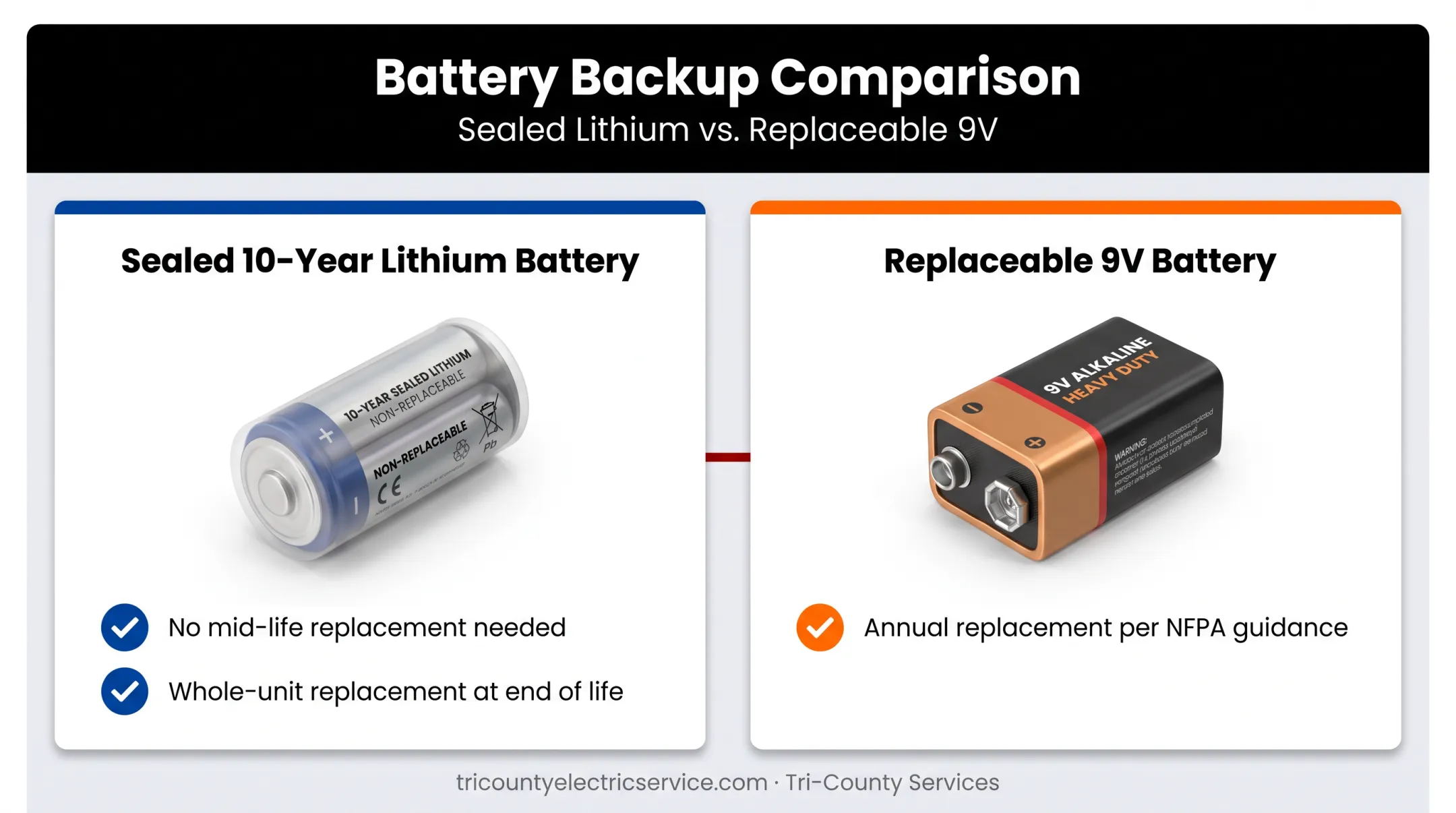

Battery Backup Type
- Sealed 10-year lithium: No mid-life swap; replace the whole alarm when the battery dies
- Replaceable 9V: Fresh battery at least once a year, per NFPA guidance
Common Mistakes and Troubleshooting
Mistakes to avoid:
- Skipping the voltage check before working on wires. This risks shock even after flipping the breaker
- Reversing wire connections or wiring the interconnect to a hot/neutral line, which can damage the alarm's circuit board
- Placing the smoke detector circuit on a GFCI breaker, causing nuisance shutoffs
Troubleshooting tips:
- One alarm sounding while others stay silent usually means a break in the interconnect wire
- Intermittent chirps often point to a loose neutral connection at one of the boxes
Frequently Asked Questions
Do you need an electrician to hardwire smoke detectors?
Like-for-like replacements are often DIY-friendly. New installs, whole-home wiring, or code-required upgrades should go to a licensed electrician like Tri-County Services—especially when inspection sign-off matters.
What wire is required for smoke detectors?
14/3 NM-B cable with ground is the common choice for 120V hardwired, interconnected smoke detectors. Always confirm the specific requirement with your local code and the alarm manufacturer's manual.
Do all hardwired smoke detectors use the same connector?
Most use a similar plug-in wiring harness, but interconnect signaling isn't standardized across brands. Mixing manufacturers in one loop isn't recommended since compatibility isn't tested or certified.
How often should hardwired smoke detectors be replaced?
Replace units every 10 years from the manufacture date, regardless of appearance, per NFPA guidance. A new battery doesn't reset this clock.
Can I add a hardwired smoke detector to an older home without opening walls?
Yes. Wireless RF-interconnect bridge units can connect new alarms to an existing hardwired system without running new cable through finished walls. Check manufacturer compatibility before choosing one.
Can smoke detectors be on a GFCI or AFCI circuit?
Smoke detector circuits should avoid GFCI protection since ground-fault trips can disable the alarm. AFCI compatibility varies by code adoption and alarm type, so confirm requirements with your local jurisdiction or a licensed electrician.
