Some homeowners attempt it anyway. But because the job touches your main panel and carries real backfeed risk, a licensed electrician is strongly recommended.
Get it wrong and the consequences are serious: electrocution, fire from undersized wiring, failed inspections, or backfed power that endangers utility line workers restoring service during an outage. OSHA warns that connecting a generator directly to household wiring without a properly installed transfer switch can energize lines far beyond your home.
This guide walks through the complete, correct process for installing a generator inlet box, following National Electrical Code (NEC) best practices.
TL;DR
- Mount the exterior inlet box, run conduit to the panel, and connect through an interlock kit or transfer switch
- Use a licensed pro for safety, code compliance, and permit approval
- Choose 30-amp vs. 50-amp based on generator output and the circuits you need powered
- Treat grounding, weatherproofing, and door/window clearance as non-negotiable
- Test after install so wiring faults don’t show up during a real outage
Installation Guide for a Generator Inlet Box
The process follows a logical sequence: site selection, mounting the inlet box, running conduit and wiring to the panel, connecting through an interlock kit or transfer switch, and testing.
For a licensed electrician, this typically runs a half-day to full day, depending on panel access, wall material, and how far the inlet sits from the panel. It also requires coordination with your local permitting office. Most jurisdictions require an inspection before you can legally use the system.
Prerequisites and Safety Considerations
Before work starts, confirm:
- Panel capacity: available breaker space that matches your generator's amperage
- Permits: most US jurisdictions require an electrical permit and inspection; a licensed electrician can usually pull the permit
- Grounding: inlet box and generator must be bonded per NEC rules; requirements differ for separately derived systems, so an electrician should evaluate your setup
Two non-negotiables:
- Never backfeed through a standard wall outlet using a suicide cord.
- Never skip the main breaker shutoff sequence before switching to generator power.
Tools and Parts Required
Parts:
- Generator inlet box (30-amp or 50-amp, weatherproof-rated)
- Copper wire sized to the inlet amperage and run length
- Weatherproof conduit and fittings
- Interlock kit or manual transfer switch
Tools:
- Drill with masonry bits (for exterior wall penetration)
- Hole saw
- Conduit benders
- Wire strippers
- Voltage tester
- PPE: gloves, safety glasses
Copper is the standard choice here. Substituting aluminum without confirming terminal compatibility and code allowances isn't worth the risk.

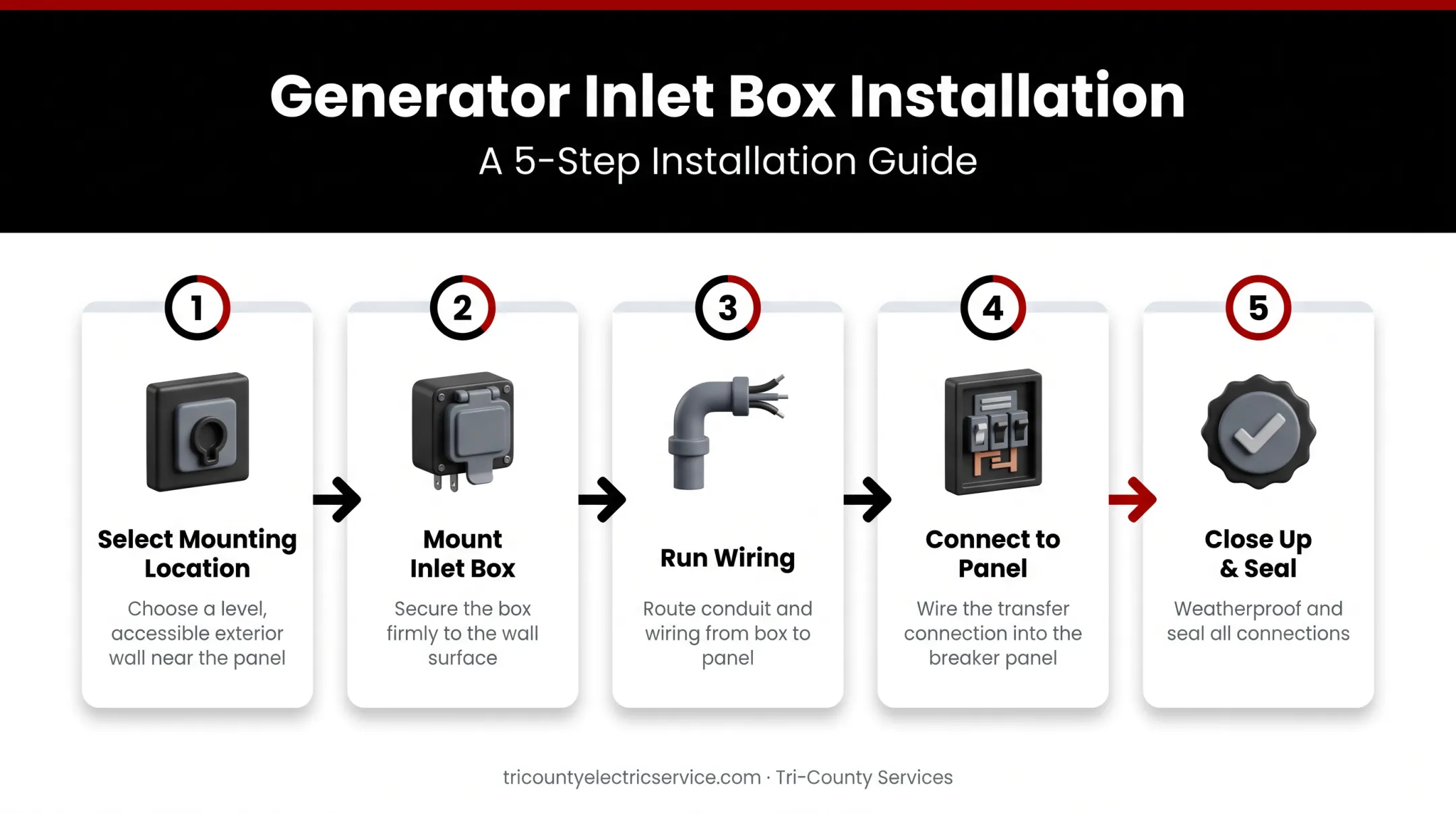

How to Install a Generator Inlet Box (Step-by-Step)
Skipping steps, especially grounding or conduit protection, is a common way projects fail inspection or create safety hazards. A licensed electrician should handle the install so the work meets code and passes inspection.
- Select the mounting location. Choose an exterior wall near the panel, at least 5 feet from doors, windows, and vents, and somewhere accessible during bad weather.
- Mount the inlet box. Level it, anchor it securely, and weatherproof the seal against the exterior wall.
- Run the wiring. Bore through the exterior wall, protect the wire run with conduit, and pull correctly gauged wire from the inlet to the panel area.
- Connect to the panel. Install an interlock kit or manual transfer switch, match the breaker size to the inlet's amperage rating, and connect neutral and ground correctly.
- Close everything up. Secure all connections, caulk penetration points, and close both panel and inlet box covers.

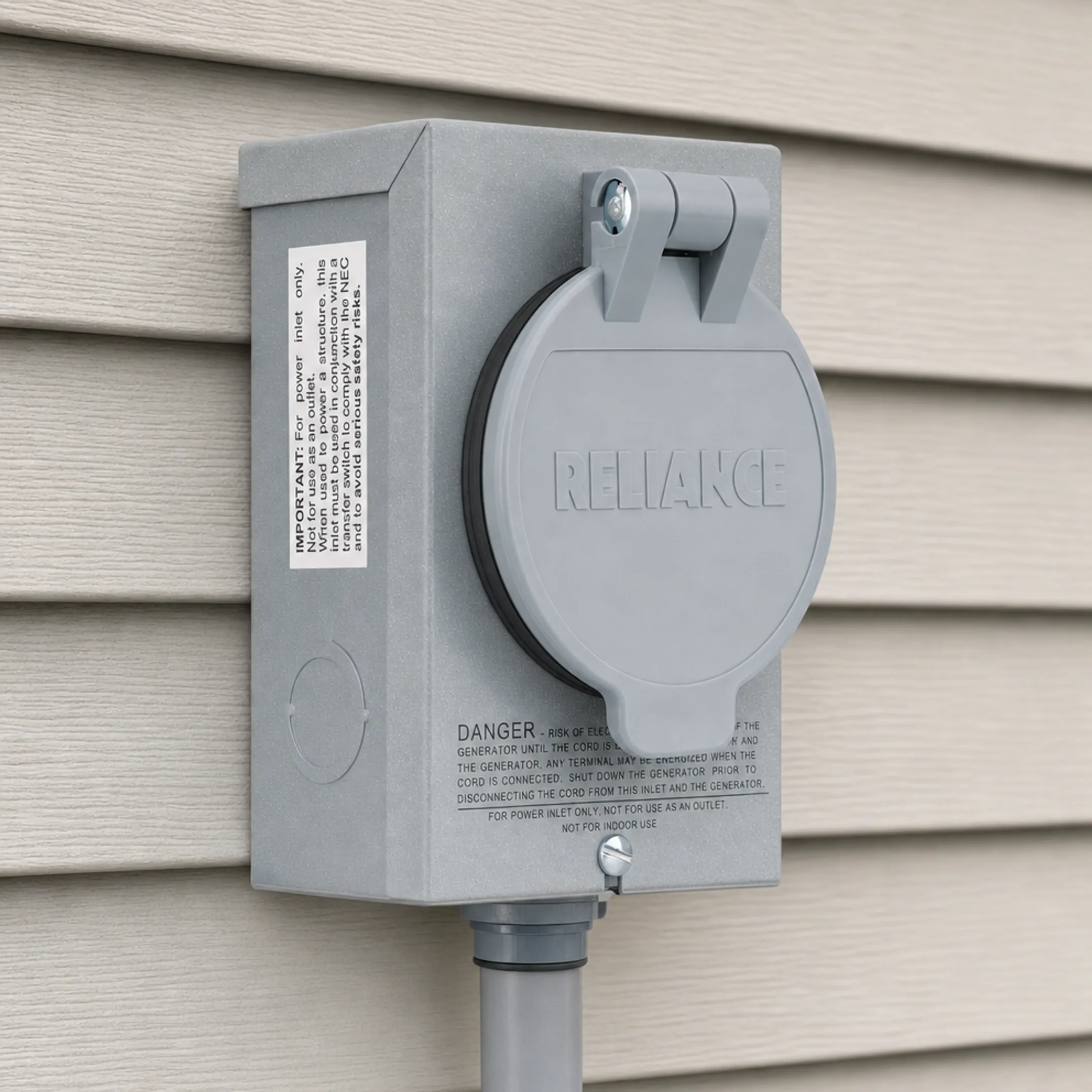

Inlet boxes for this job should be cULus-listed and NEMA 3R-rated for outdoor use, with proper grounding and weatherproof covers. Reliance Controls PB30 and PB50 units are common examples of the listed equipment electricians specify for home backup power.
Post-Installation Checks and Validation
Don't assume the install works just because it looks right. Confirm it before you actually need it.
Visual checks:
- Weatherproof seal is intact
- Box is securely mounted
- Breakers are correctly labeled
Functional testing:
- Connect the generator and power it on
- Confirm selected circuits energize correctly without tripping breakers
- Switch back to utility power and confirm the interlock or transfer switch isolates sources properly
Skip this step and you may not discover a wiring fault until you're standing in the dark during a storm. That is the worst possible time to troubleshoot.

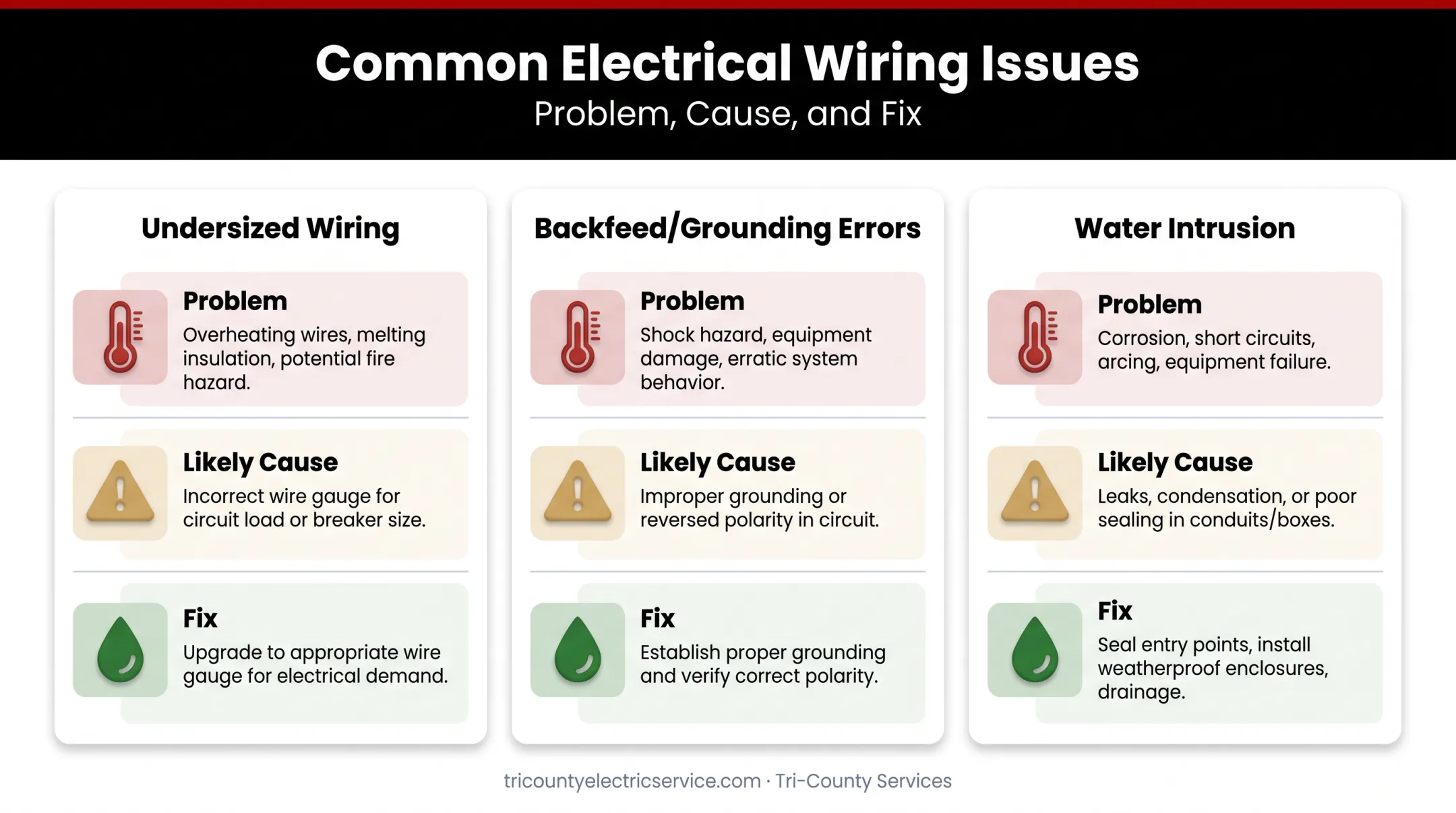

Common Installation Problems and Fixes
A solid inlet box still fails when wiring, transfer equipment, or weather sealing is wrong. These are the problems homeowners hit most often, and how to fix them.
Undersized Wiring for Generator Load
Problem: Breakers trip or wires overheat under generator load.
Likely cause: Wire gauge doesn't match generator amperage output.
Fix: Have a licensed electrician verify amperage needs and upsize wiring to match the load.
Backfeed or Grounding Errors
Problem: Generator power feeds back into utility lines, or inconsistent grounding creates shock risk.
Likely cause: Missing or improperly installed interlock kit/transfer switch, or poor bonding.
Fix: Have a licensed electrician inspect and correct the interlock or transfer switch installation and grounding.
Water Intrusion in Inlet Box
Problem: Corrosion or electrical failure inside the box over time.
Likely cause: Improper caulking or a non-weatherproof cover.
Fix: Reseal penetration points and install a gasketed, weatherproof cover. If corrosion or failure is already present, have a licensed electrician inspect the box before reuse.
Pro Tips for a Reliable Generator Backup Setup
- Use a certified installer. A Generac Certified Installer can handle inlet box and generator sizing for code compliance and warranty protection. Tri-County Services holds this certification and serves Northeast Ohio, Southwestern Ohio, and Northern Kentucky.
- Schedule before storm season. During an active outage, electricians are stretched thin and parts are harder to source.
- Keep your documentation. Permit approvals, inspection sign-offs, and wiring diagrams help with troubleshooting and can support resale.
- Consider a 50-amp inlet even if your current generator only needs 30 amps. That headroom avoids rewiring if you upgrade later.
Conclusion
Correct generator inlet box installation directly affects your home's safety, code compliance, and reliability when the power goes out. Prioritize professional installation, proper permitting, and thorough testing now. Do not wait until the next storm knocks out your street.
Frequently Asked Questions
How much does it cost to have a generator inlet box installed?
Costs vary based on wire run length, panel accessibility, and whether you're using an interlock kit or transfer switch. Get a free estimate from a licensed electrician for an accurate number based on your home.
Do I need a permit to install a generator inlet?
Most US municipalities require an electrical permit and inspection for this work. Licensed electricians typically handle the permit process on the homeowner's behalf.
What are the legal ways to connect a generator to my house?
Three code-compliant methods exist: interlock kits, manual transfer switches, and whole-house automatic transfer switches. Each isolates generator power from utility lines to prevent backfeed.
Does a generator inlet need to be grounded?
Yes. Proper grounding and bonding per NEC code is required to prevent shock hazards, though exact requirements depend on your generator's configuration.
Which is better for my home, a 50 amp or a 30 amp generator plug?
A 30-amp inlet suits smaller portable generators and fewer circuits. A 50-amp inlet supports larger generators and more household circuits, and gives you room to upgrade later.
Can you put a generator inlet in a garage?
Yes, with proper clearance from vents and doors, and following local code for ventilation and moisture protection. Note that the generator itself must always run outdoors, never inside a garage.
