That said, this project isn't for everyone. If you're comfortable with a screwdriver, voltage tester, and reading wire labels, you can likely handle it. If your home has older wiring, no ground wire, or multiple circuits feeding one box, stop and call a licensed electrician.
Get it wrong, and the consequences are real: shock hazard, fire risk, code violations, and failed inspections during a home sale. This guide walks through safe, code-compliant GFCI installation from prep to final testing.
TL;DR
- Power off at the breaker, verify with a tester, then identify LINE vs. LOAD before you touch wires
- Hook up black to brass LINE, white to silver LINE, and ground to the green screw
- Run TEST, then RESET; label any downstream outlets "GFCI Protected"
- Call a licensed electrician for ungrounded, multi-wire, or complicated circuits
Prerequisites and Safety Considerations
Before you touch a single wire, confirm which breaker feeds the outlet and shut it off completely. Don't trust the panel label alone — verify with a non-contact voltage tester, then double-check with a multimeter at the outlet itself.
Compatibility matters just as much as safety:
- Match the GFCI amperage (15-amp or 20-amp) to your wire gauge and breaker size
- Confirm your electrical box has enough depth and volume for the bulkier GFCI device
- Check that the device is rated for the correct voltage (most residential outlets are 125V)
Where Code Requires GFCI Protection
The National Electrical Code mandates GFCI protection in specific high-risk locations. Under the 2020 NEC 210.8(A), per Leviton's code reference, these locations include:
- Bathrooms, kitchens (countertop receptacles), and laundry areas
- Garages, basements, and crawl spaces
- Outdoor locations and any spot within 6 feet of a sink
- Boathouses and areas near bathtubs or showers
The 2023 NEC expanded kitchen coverage further, requiring GFCI protection on all 125-250V kitchen receptacles—not just countertop ones. Skipping these requirements isn't just risky; it can sink a home inspection or resale appraisal.
If anything about the circuit looks off, stop. Non-negotiables — call a professional if:
- Wires show visible damage, corrosion, or burn marks
- The circuit lacks a neutral wire
- You're unsure whether the circuit is properly grounded
- Breakers trip repeatedly, lights flicker, or you smell burning
Tri-County Services can evaluate wiring, panels, and outlets for code violations and fix issues that go beyond a simple swap.
Tools and Parts Required
You don't need a professional's full toolkit, but a few essentials are non-negotiable:
- GFCI outlet (standard grounded for most homes; "No Equipment Ground" for older two-wire systems per NEC 406.4(D)(2))
- Non-contact voltage tester (confirms power is off)
- Wire strippers
- Insulated screwdrivers
- GFCI outlet tester (checks wiring after installation)
- Wire nuts for capping unused terminals
Match the outlet to your wiring. Standard grounded GFCIs cover most modern homes; ungrounded two-wire systems need the "No Equipment Ground" version.
Multimeters and insulation resistance testers are optional for DIYers. Electricians use them for deeper diagnostics, but a basic tester confirms safe, correct wiring for a standard swap.
How to Install a GFCI Outlet (Step-by-Step)
Rushing wire identification is the number one cause of failed GFCI installations. Work through each step below carefully. Getting LINE and LOAD wrong disables the safety feature entirely, even though the outlet may look and function normally.

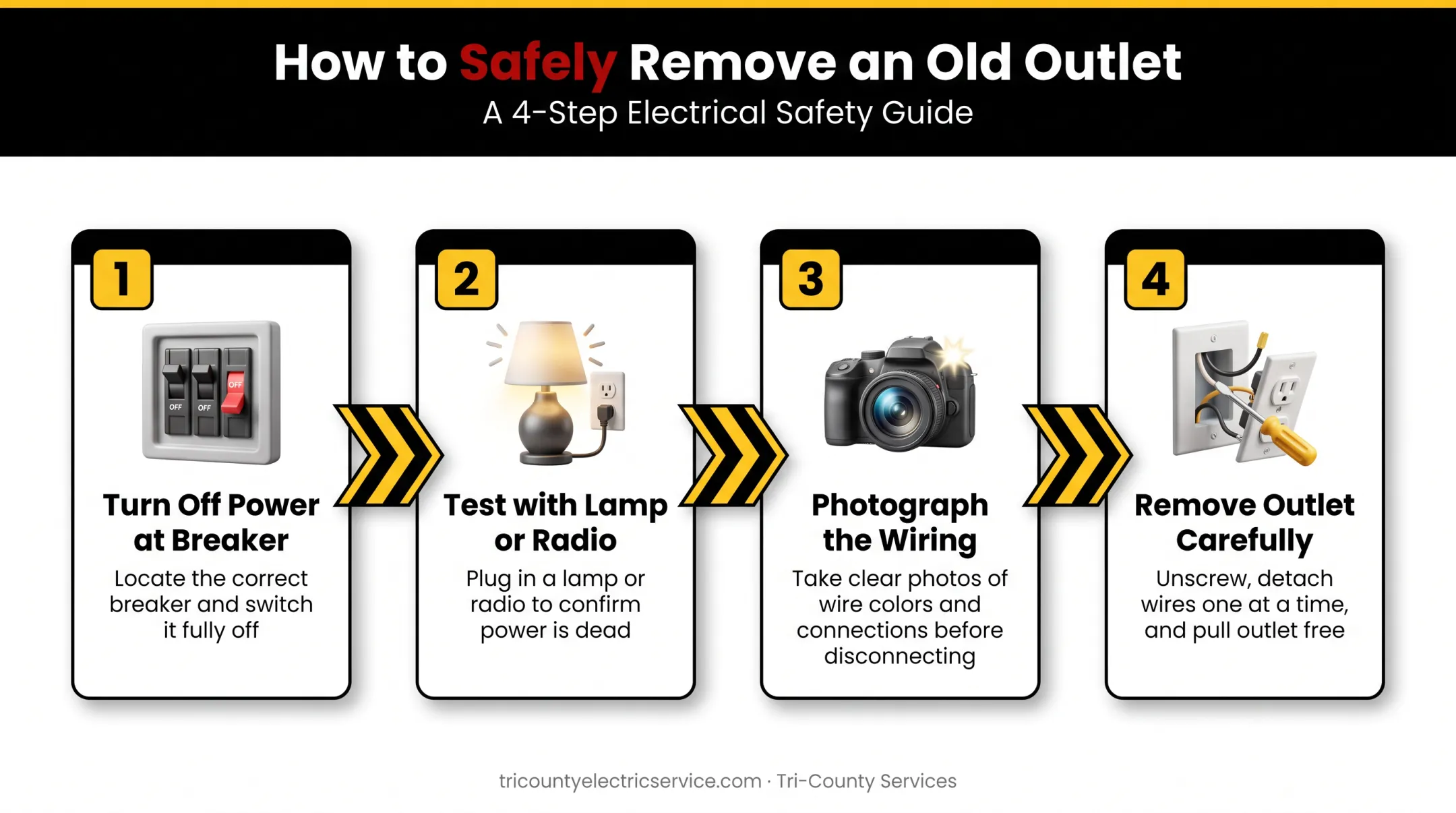

Removing the Old Outlet
- Turn off power at the breaker and confirm with a lamp or radio plugged into the outlet
- Photograph the wiring before disconnecting anything — this saves headaches later
- Label each wire's position with tape if photos aren't clear enough
- Remove the old outlet from the box carefully, keeping wires intact
Identifying LINE vs. LOAD
This is where most DIY installs go wrong. LINE is the cable bringing power from the panel. LOAD feeds downstream outlets. If only one cable enters the box, it's LINE by default.
Reversing these wires doesn't just cause a malfunction; it disables the GFCI's protective function while the outlet still appears to work. That's a hidden hazard, not a visible failure.
Wiring the New GFCI

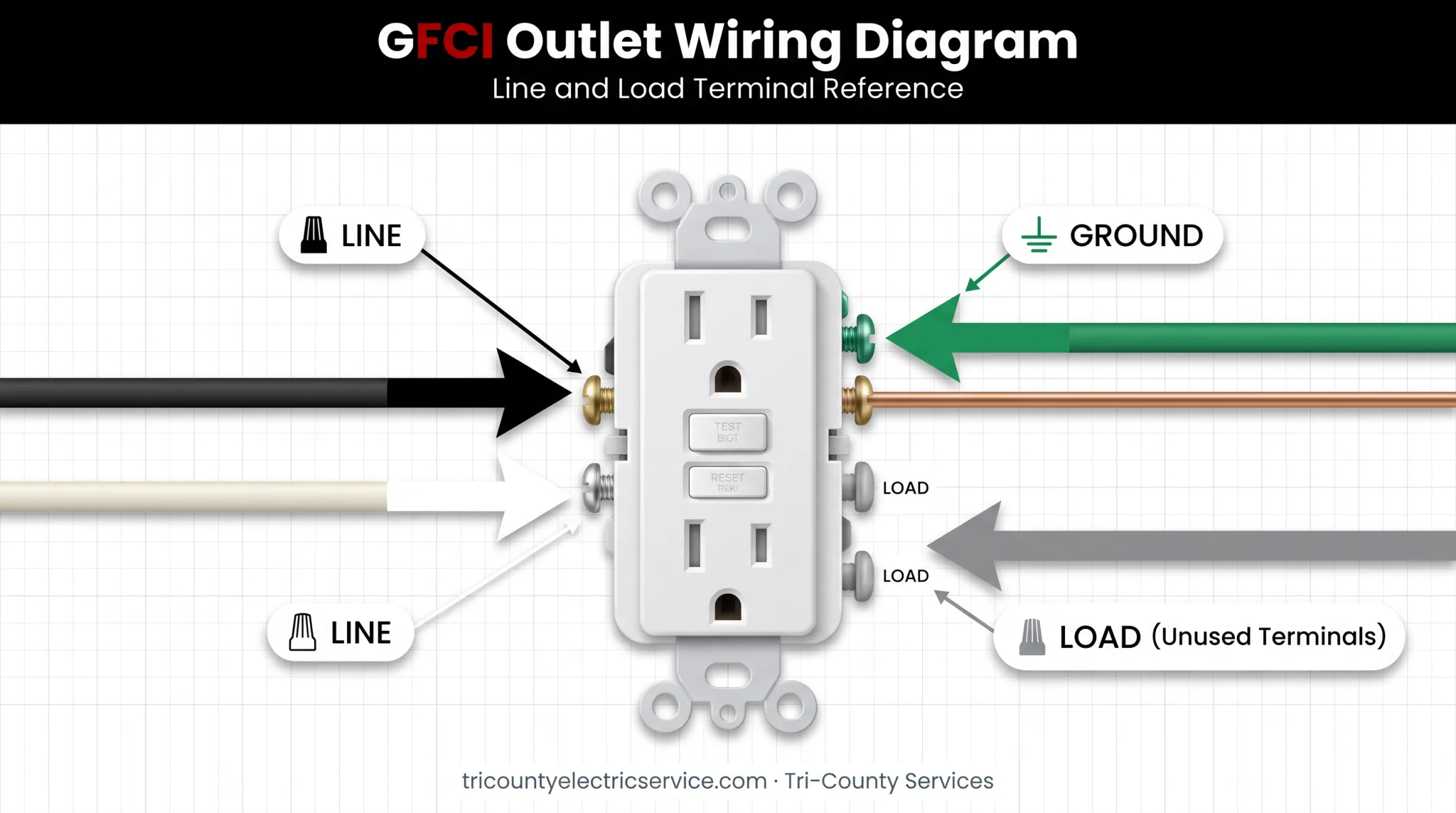

Connect the wires as follows:
- Black wire → brass LINE terminal
- White wire → silver LINE terminal
- Ground wire (bare or green) → green screw
- Unused LOAD terminals → cap with wire nuts if you're not protecting downstream outlets
Mounting and Restoring Power
Make sure the box has enough volume for the larger GFCI device. Per NEC 314.16 box-fill rules, a single-gang device yoke counts as two conductor volumes. If your box is too tight, you'll need a deeper one before proceeding.
Once mounted, restore power and press TEST, then RESET. The outlet should trip and reset cleanly. If it doesn't, shut the breaker off and recheck LINE versus LOAD before testing again. If it still won't trip and reset correctly, stop and call a licensed electrician rather than leaving the circuit unprotected.
Post-Installation Checks and Validation
A GFCI outlet tester with indicator lights confirms correct hot, neutral, and ground wiring in seconds. Plug it in and read the light pattern against the tester's guide.
Next, press the TEST button. The outlet should cut power immediately; press RESET to restore it. If it does not trip, stop and recheck the line/load wiring before using the circuit.
Any downstream outlet protected by your new GFCI must be marked "GFCI Protected," per NEC 406.4(D)(2). The label does three practical jobs:
- Tells future electricians or inspectors what is protected
- Flags outlets that share the same protection zone
- Satisfies code compliance during inspections
Skipping validation is risky because a poorly wired GFCI can look functional while leaving your family unprotected. The outlet might power a lamp fine and still fail to trip during an actual ground fault.

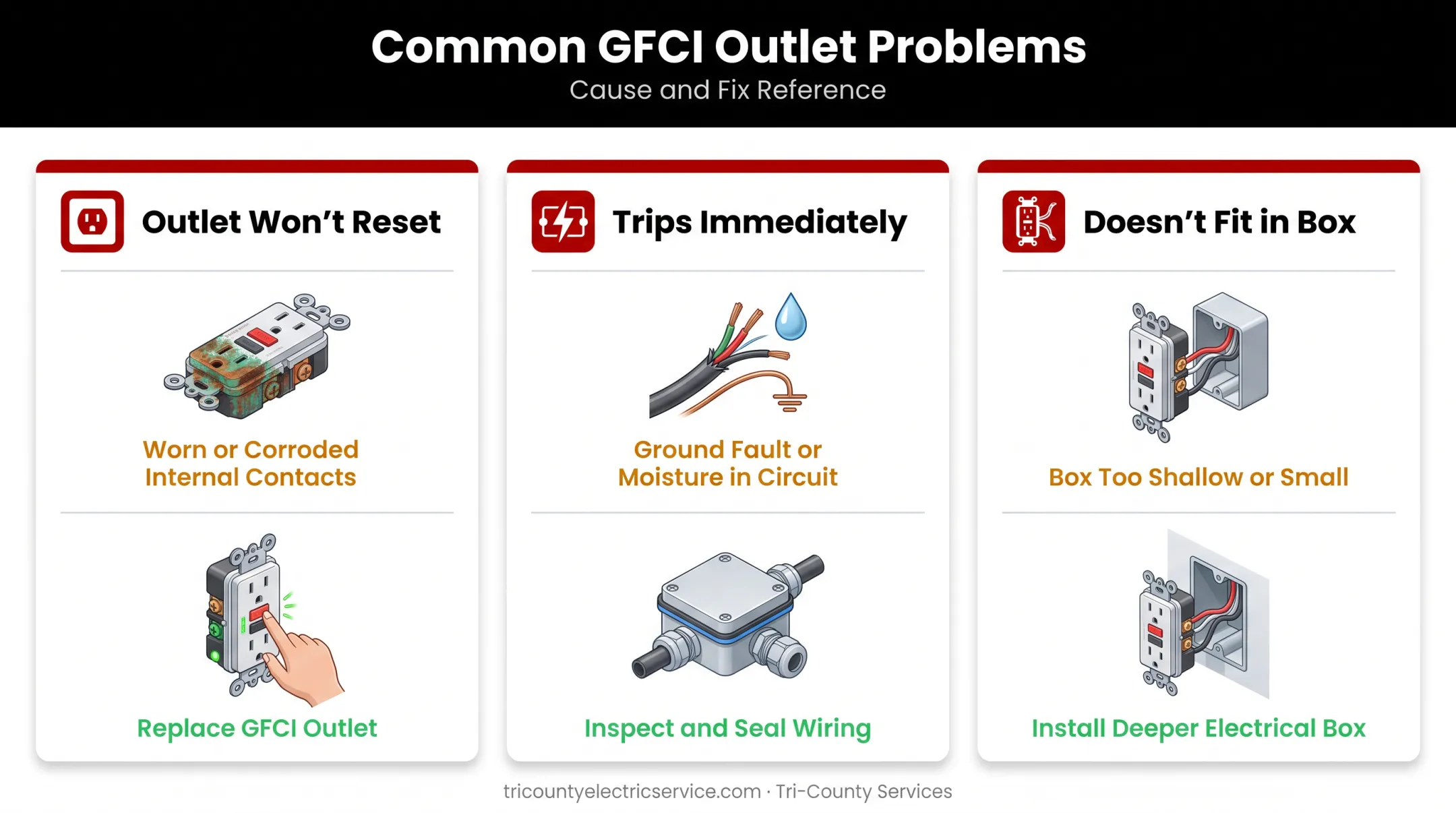

Common Installation Problems and Fixes
| Problem | Likely Cause | Fix |
|---|---|---|
| Outlet won't reset | Reversed LINE/LOAD wiring | Recheck terminal labels, reconnect correctly |
| Trips immediately, nothing plugged in | Shared neutral or existing ground fault downstream | Isolate circuits to locate the fault |
| Outlet doesn't fit in box | Insufficient box volume | Replace with a deeper box before reinstalling |
If you've triple-checked your wiring and the GFCI still won't reset or keeps tripping, the cause is often a fault elsewhere on the circuit. DIY troubleshooting ends here—a licensed electrician can diagnose it safely. Tri-County Services handles GFCI and circuit troubleshooting for residential and commercial customers.
Pro Tips for Installing GFCI Outlets Effectively
A few habits separate a safe long-term install from a failure waiting to happen:
- Test monthly: press TEST and RESET to confirm the device still trips, as recommended by NFPA's GFCI safety checklist.
- Replace outlets with cracking, warping, loose plugs, or water exposure—these are failure signs, not cosmetic issues.
- Avoid stacking a GFCI breaker and a GFCI outlet on the same circuit; dual protection often causes nuisance trips, so pick one.
If you need more than a single outlet swap, Tri-County Services can bundle GFCI replacement with panel upgrades, whole-home rewiring, or surge protection. Those larger projects fit older homes with outdated wiring and homes prepping for sale.
Conclusion
A correctly installed GFCI outlet directly prevents shock and fire hazards while keeping your home code-compliant. Take your time identifying wires, test thoroughly before calling the job done, and call a licensed professional if the wiring or test results look wrong.
If your DIY attempt didn't go as planned, or you're facing sparks, a burning smell, or a breaker that won't stay on, stop and get help. Tri-County Electric Service offers 24/7 emergency response and same-day scheduling for non-urgent issues, with free estimates on service calls.
Frequently Asked Questions
Do all outlets in a bathroom need to be GFCI (NEC)?
Yes. NEC 210.8(A)(1) requires GFCI protection for all bathroom receptacles, not only those near the sink. Local amendments can add rules, but bathroom outlets are treated as a full GFCI zone under current code.
Do I need a GFCI for a dryer outlet?
It depends on location and which NEC edition your area adopted. A 240V dryer receptacle in a garage, basement, or laundry/utility space often needs GFCI protection—confirm with a licensed electrician for your setup.
Do 240V GFCI outlets exist?
Yes. Products like Hubbell's watertight 240V, 30-amp GFCI receptacle exist for equipment such as spas, pumps, and shop tools that run on higher voltage circuits.
Can I run two GFCI outlets on one circuit?
It's possible, but usually unnecessary. One GFCI can protect downstream receptacles from its LOAD terminals, so a second GFCI on the same circuit is rarely needed.
Can I wire a light switch and GFCI outlet in the same box?
Yes, in a two-gang box, if the switch and GFCI are wired so only the intended receptacles sit on the GFCI LOAD path. Shared neutrals or mixed LINE/LOAD ties can defeat protection—have a licensed electrician review the layout if you're unsure.
Why can't I plug into my tamper-resistant outlet?
Tamper-resistant outlets have internal shutters that only open with even, simultaneous pressure on both prongs. A single prong, or uneven pressure, won't unlock the mechanism.
