DIY installation is possible for simple setups. That said, licensed electricians are strongly recommended for panel connections, code compliance, and resistance testing. Get it wrong and you're looking at shock hazards, fire risk, or expensive rework down the line.
This guide walks through the complete process, aligned with NEC 250 grounding-electrode standards.
TL;DR
- Ground rods need at least 8 feet in contact with earth per NEC requirements
- A single rod exceeding 25 ohms resistance typically needs a supplemental rod spaced 6+ feet away
- Core steps: site selection, driving the rod, connecting the grounding conductor, testing resistance
- DIY works for simple jobs, but licensed electricians ensure safe, code-compliant panel connections
- Tri-County Electric Service handles grounding corrections and code compliance work across Northeast Ohio
Installation Guide for Earth Rods
The process breaks down into four broad stages: choosing a location, driving the rod, connecting it to your grounding system, and validating the resistance reading. This section covers the prep that makes those steps go smoothly.
For a single rod in workable soil, expect 1 to 3 hours. Rocky ground, multiple rods, or trenching can stretch that considerably.
Prerequisites and Safety Considerations
Before you dig or drive a rod, complete this required step.
Call 811 first. This is the national utility-locate service, and it's free. 811 stresses that every dig requires a call, regardless of how small the project seems. Submit your request a few business days ahead. Notice periods vary by state, so don't wait until the last minute.
Once utilities confirm the area is clear, assess your soil:
- Rocky or dry soil increases difficulty and may require an angled or trenched installation
- Soft, moist soil drives easiest and typically gives better conductivity
- Soil resistivity changes with depth, which affects how many rods you'll need and where to place them
On the code side, remember these baseline requirements:
- Rod length: minimum 8 feet, with at least 8 feet in contact with earth
- Material: copper-clad, stainless steel, or galvanized/zinc-coated steel, minimum 5/8-inch diameter unless listed otherwise
- Placement: reasonably close to the service panel, following local jurisdiction rules
Never proceed without confirmed utility clearance. It's the single biggest risk factor in this entire process. Underground utility damages topped nearly 197,000 reported incidents in 2024 alone.

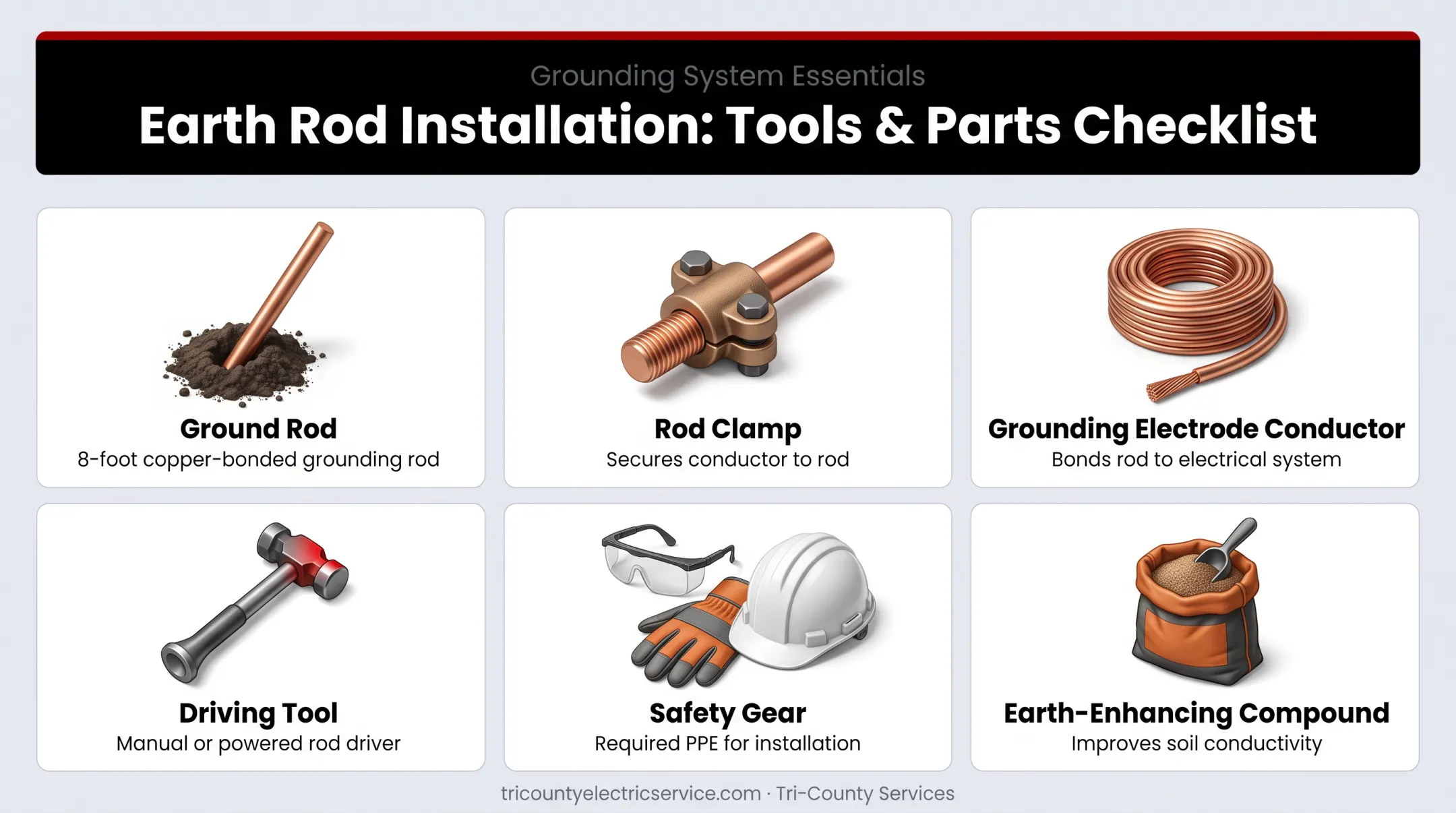

Tools and Parts Required
Here's what you'll need on hand:
- Listed ground rod — copper-clad or stainless steel, 8 feet minimum, 5/8-inch diameter
- Rod clamp — listed, direct-burial rated
- Grounding electrode conductor — copper wire, sized per your system
- Driving tool — sledgehammer for small jobs, hammer drill with rod-driving bit for faster work
- Safety gear — gloves and eye protection
Earth-enhancing compound is optional, but useful in rocky or sandy soil where conductivity is poor. Conductive backfill compounds can lower resistance when native soil alone will not meet your target reading.

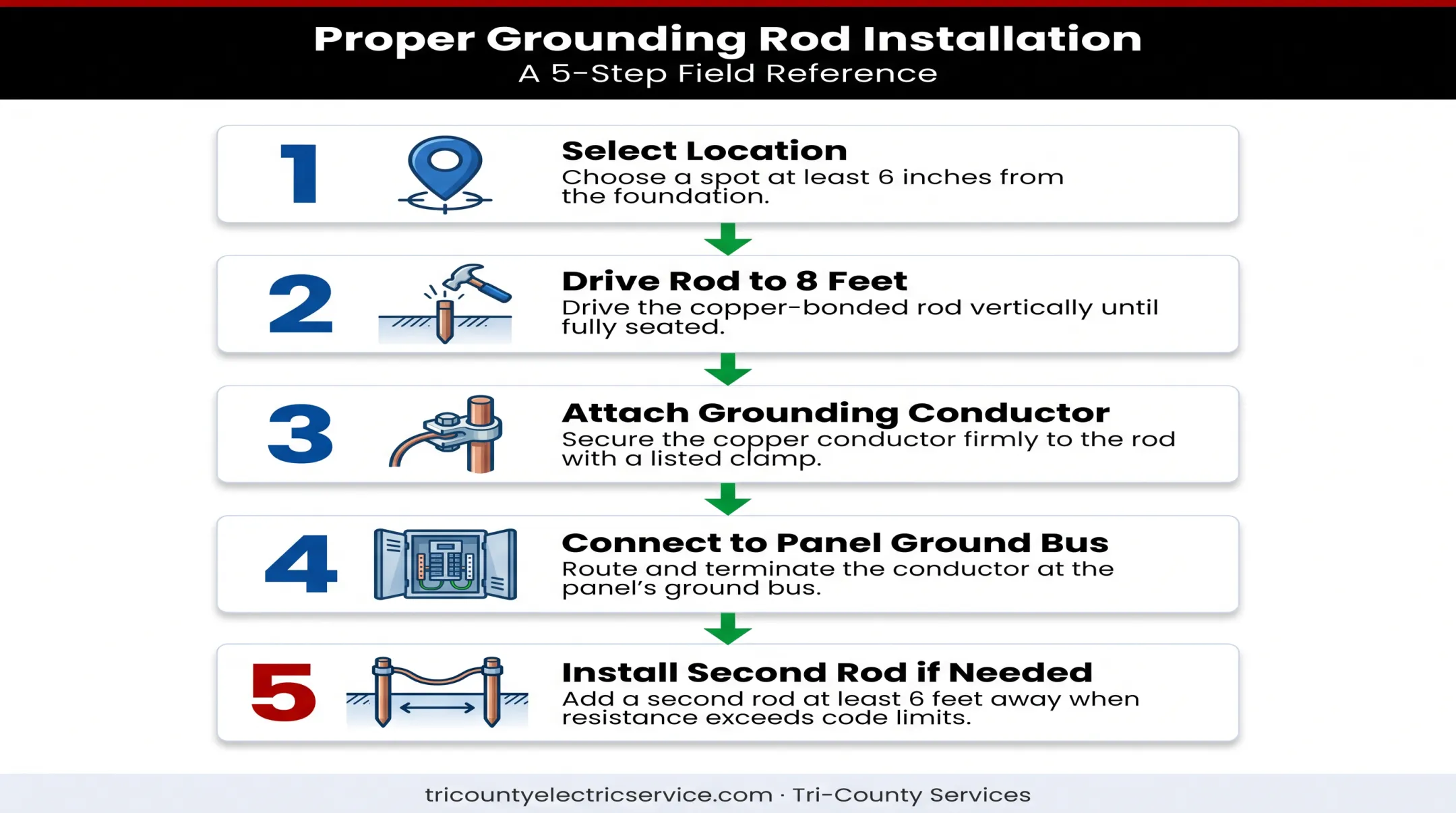

How to Install an Earth Rod (Step-by-Step)
Skipped depth, rushed clamps, or a loose conductor are what fail inspections. Worse, weak grounding often shows up only during a fault—when you need it most.
Panel connections and electrode bonding belong to a qualified person with the service safely de-energized. Use the sequence below as the standard install path.
Select the location. Place the rod near the electrical panel, at least 2 feet from the foundation, in soft or moist soil when you can. Call 811 before you dig so utilities are marked.
Drive the rod vertically to 8 feet minimum. Use a post driver or heavy hammer; water helps in hard soil. If you hit rock, angle the rod up to 45 degrees from vertical instead of bending or cutting it short.
Attach the grounding electrode conductor. Use a listed acorn-type clamp on clean rod metal. Land a continuous copper grounding electrode conductor sized for the service; keep the joint tight and corrosion-free.
Connect the other end to the panel's ground bus. Breakers off—always—before you open the panel. Land the conductor on the ground bar (not a subpanel neutral bar) and torque the lug to spec.
Install a second rod if resistance testing requires it. If a single rod reads over 25 ohms, add a second rod at least 6 feet away and bond the two with a jumper of the same conductor size.
If vertical or angled driving fails on shallow bedrock, NEC allows a last-resort electrode buried horizontally in a trench at least 30 inches deep.
For an inspection-ready electrode, resistance check, and panel bond, licensed electricians at Tri-County Services handle full grounding installs across Northeast Ohio, Southwestern Ohio, and Northern Kentucky.
Post-Installation Checks and Validation
Before you cover anything up, confirm the rod is:
- Vertical in the hole
- Secure and fully seated
- Stable, with no shift when you push on it
Testing Resistance

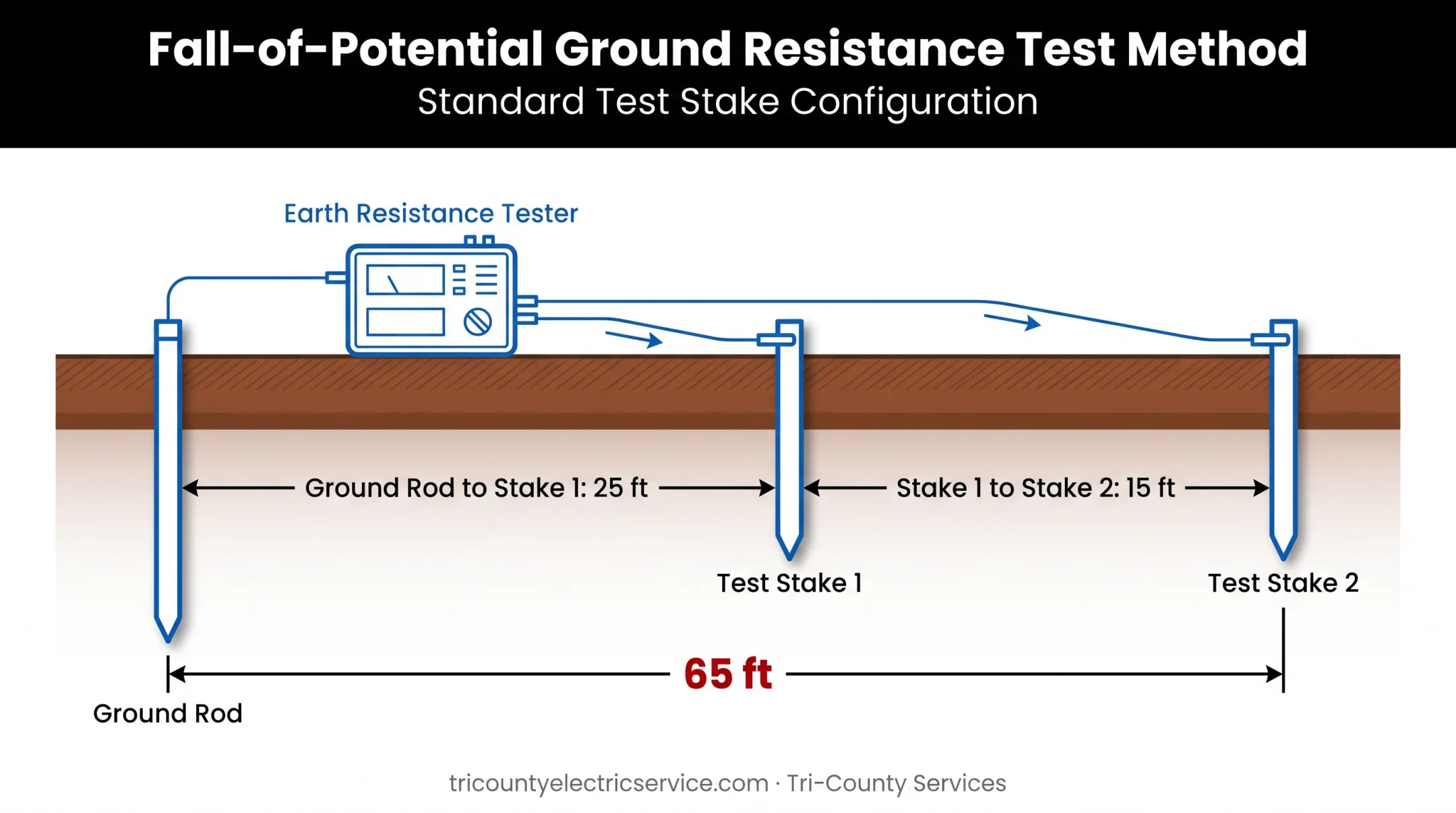

Functional testing uses an earth resistance tester, most commonly through the fall-of-potential method. Disconnect the rod from the system, connect it to the tester, and place two additional stakes in a line away from it. Typically, 65 feet is enough distance for accurate results.
Target: 25 ohms or less for a single rod to stand without needing a supplemental electrode.
Professional installers like Tri-County Electric Service handle resistance testing and documentation as a standard part of grounding installation work, giving you a paper trail for future inspections.
Skipping this step lets grounding failures go undetected until a fault or lightning strike exposes them. Fixes at that stage cost far more than a proper test.

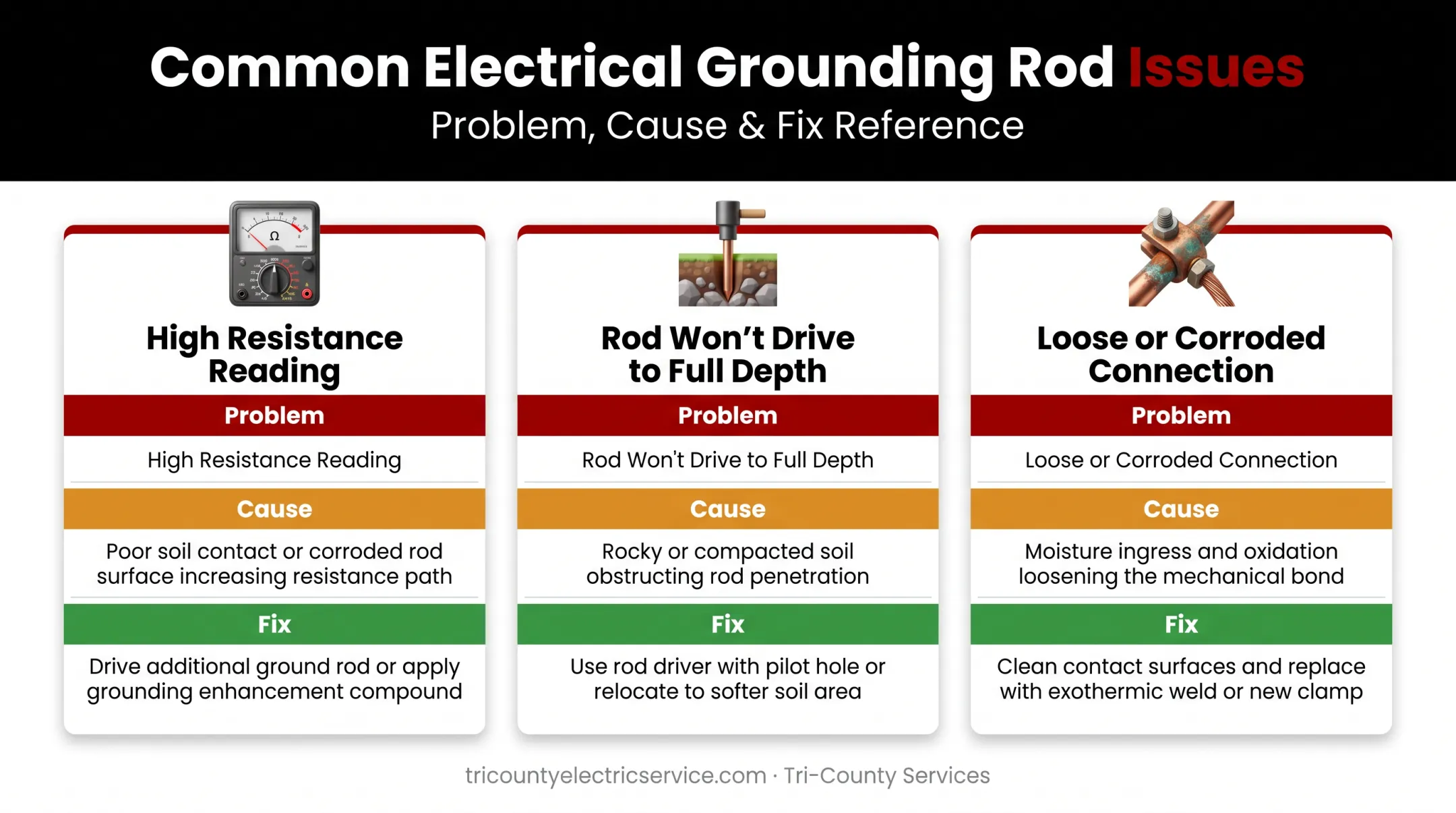

Common Installation Problems and Fixes
Three issues come up more than any others.
High resistance reading
- Problem: Test result exceeds 25 ohms
- Cause: Dry, rocky, or sandy soil with poor conductivity
- Fix: Add a supplemental rod at least 6 feet away, or apply earth-enhancing compound
Rod won't drive to full depth
- Problem: Rod hits rock or hardpan before reaching 8 feet
- Cause: Shallow bedrock or compacted soil
- Fix: Angle the rod at 45 degrees, or bury it horizontally at least 30 inches deep
Loose or corroded connection
- Problem: Grounding conductor loosens or shows corrosion over time
- Cause: Wrong clamp type, or moisture exposure without protection
- Fix: Use a direct-burial-rated listed clamp, and inspect the connection periodically
If resistance stays high or the connection keeps failing after these fixes, a licensed electrician can retest the electrode and bring the install up to code.
Pro Tips for Installing Earth Rods Effectively
These habits keep earth rod installs on schedule and inspection-ready:
- Check local AHJ requirements. Many jurisdictions adopt stricter rules than NEC minimums—confirm before you drive the first rod.
- Install after rainfall when possible. Softened soil drives faster and usually reads lower resistance.
- Document depth, location, and resistance readings. Clear records speed future inspections and troubleshooting.
- Hire a licensed electrician. Code-compliant work reduces failed inspections and costly rework.
Tri-County Electric Service has handled grounding corrections and electrical code compliance across Northeast Ohio since 1975. Technicians know the clay-heavy and rocky soils common in Cuyahoga, Geauga, and Lake counties—and how those conditions affect rod depth and resistance.
Conclusion
Correct earth rod installation isn't a minor detail. It directly affects electrical safety, lightning protection, and how your system performs during a fault. Following proper depth, spacing, and testing procedures matters, whether you handle it yourself or bring in a licensed professional.
If you'd rather skip the guesswork on panel connections and resistance testing, contact Tri-County Services. Our licensed electricians handle grounding work to code so your system stays safe and compliant.
Frequently Asked Questions
Where should ground rods be installed?
Place rods near the electrical service panel, at least 2 feet from the foundation, and only in areas confirmed free of underground utilities through an 811 locate request.
How deep should an ground rod be installed?
NEC requires a minimum of 8 feet in contact with the soil. Drive it vertically where possible, or angle it if you hit rock.
How much does it cost to install an ground rod?
Costs depend on soil conditions, how many rods you need, and labor. A licensed electrician can give you a property-specific estimate—often at no charge for the visit.
Can I install a ground rod myself?
You may be able to drive the rod yourself in a simple setup, but panel bonding and code compliance should be handled by a licensed electrician to pass inspection and stay safe.
What happens if a ground rod fails resistance testing?
A supplemental rod, spaced at least 6 feet away and bonded to the first, is typically required to bring the system to an acceptable resistance level.
How often should ground rods be inspected or tested?
Periodic testing every 1-2 years helps catch corrosion or resistance issues early, particularly for commercial or industrial systems where reliability matters most.
