Get it wrong and you're looking at leaks, hot water backflowing into your cold lines, electrical hazards, or a pump that burns out early. This guide walks through the full installation process, the tools you'll need, and the mistakes that trip up most homeowners.
TL;DR
- Expect plumbing, electrical work, and precise valve placement in one install
- Materials usually cost a few hundred dollars; pro installation typically runs $400 to $1,300
- Choose a dedicated return line or a crossover valve on the cold water line
- Valve placement, insulation, and leak testing drive long-term performance
- Leave electrical and code-related work to a licensed professional
Installation Guide for a Hot Water Recirculation Pump

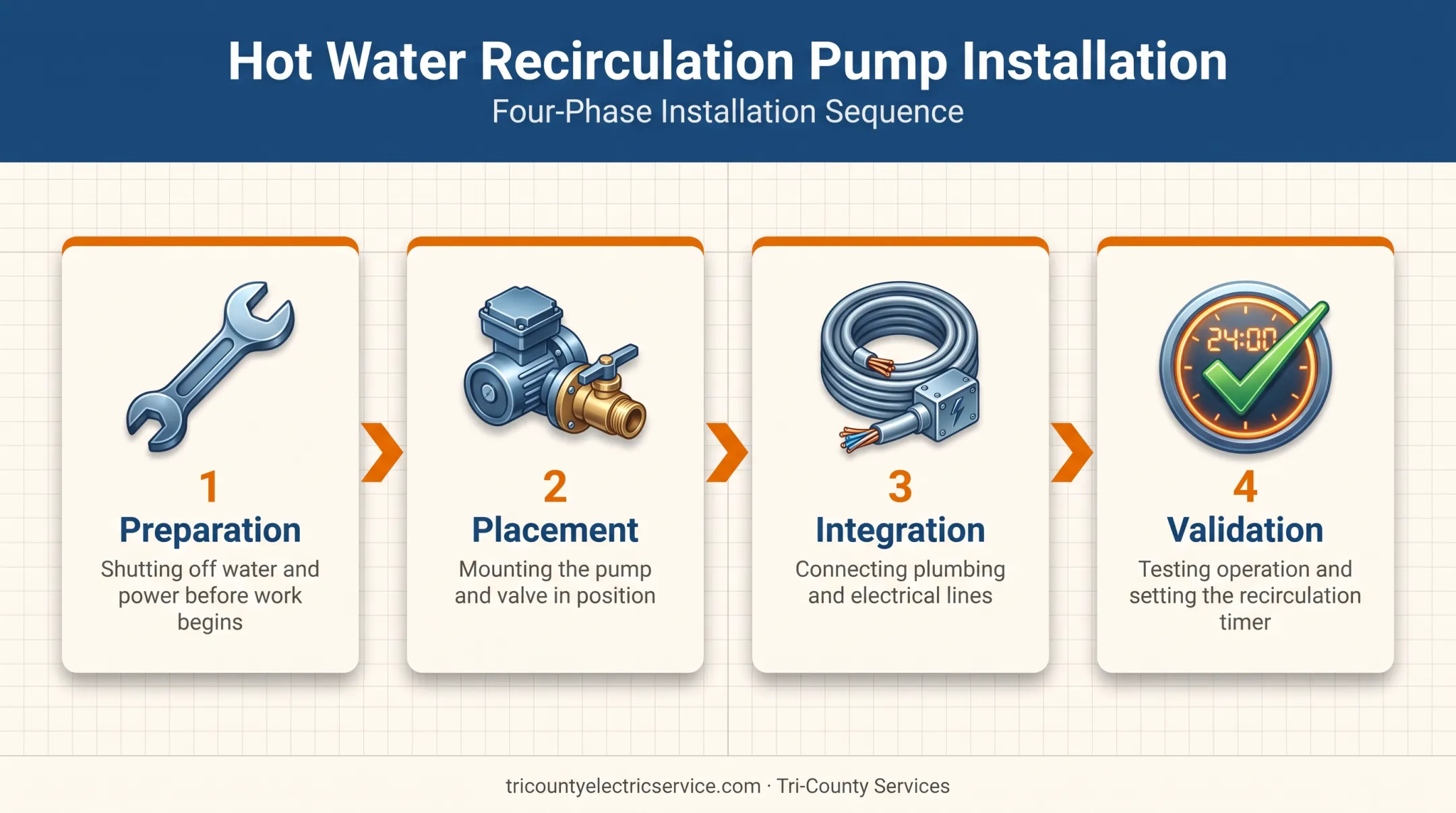

Installation breaks down into four phases:
- Preparation — shutting off water and power
- Placement — mounting the pump and valve
- Integration — plumbing and electrical connections
- Validation — testing and timer setup
Most installations take a few hours. You'll need basic plumbing tools, a solid grasp of electrical safety, and awareness of local code requirements before you start.
Prerequisites and Safety Considerations
Before buying anything, confirm a few things:
- Water heater compatibility. Tank-style heaters generally work fine. Many tankless systems don't support recirculation at all—Watts excludes tankless units from its crossover systems.
- Power source. You'll need a nearby GFCI-protected outlet or a dedicated circuit for the pump, depending on the model.
- Return path. Figure out whether your home already has a dedicated return line, or whether you'll need a crossover valve tied into the cold water line instead.
Two rules aren't optional:
- Never work on the system with power or water still on.
- Never skip leak-testing before running the system normally.
If electrical connections are outside your comfort zone, have a licensed electrician handle the circuit or outlet work.
Tools and Parts Required
You'll typically need:
- Recirculation pump kit (pump plus check valve or crossover valve)
- Pipe wrench and adjustable wrench
- PTFE (plumber's) tape
- Bucket and towels for residual water
- Screwdriver set
Depending on your pipe material, you may also need tee connectors or dielectric unions to prevent corrosion between dissimilar metals. Pipe insulation isn't required, but it's worth adding—more on that below.
How to Install a Hot Water Recirculation Pump (Step-by-Step)
Skipping steps, like failing to drain pressure or misreading a valve's flow arrow, is the number-one cause of leaks and backflow problems. Follow the sequence in order.
- Shut off power and water. Flip the breaker to the water heater and close the main or heater shut-off valve.
- Drain pressure. Disconnect the hot water line at the heater and catch residual water with a bucket. Leave a hot faucet open while you work.
- Mount the pump. Attach it to the water heater's hot water outlet, making sure the flow arrow on the housing points away from the tank.
- Install the check valve or crossover valve. Use a check valve on a dedicated return line, or a crossover valve at the farthest fixture if you have no return. Connect the supply lines per the manufacturer's diagram.
- Seal every connection. Wrap threaded joints with PTFE tape and reconnect the hot water pipe. Check your manual first: some manufacturers, including Watts, allow tape only on the pump's NPT connections, not on sensor valve threads.
- Restore water and power. Reopen the shut-off valve and inspect every joint for leaks. Once connections stay dry, restore power at the breaker and program the timer for peak household usage hours.

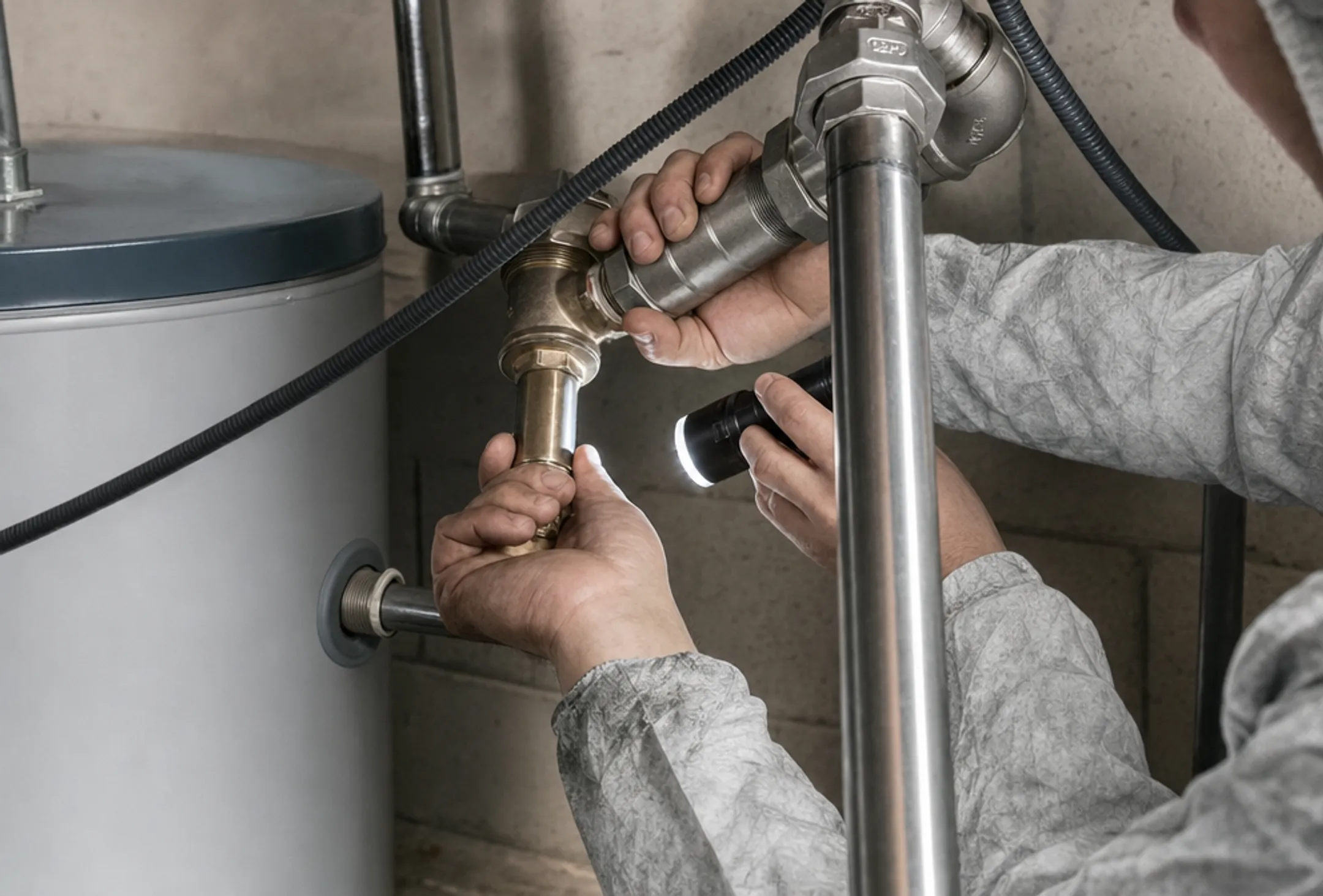

Post-Installation Checks and Validation
Before letting the system run unattended, confirm it’s working correctly:
- Inspect every connection for drips or dampness
- Purge trapped air by running water at the farthest fixture until it flows smoothly
- Confirm hot water arrives at the tap within seconds and the pump hums during its cycle
- Verify temperature settings match the manufacturer’s calibration so the pump doesn’t run nonstop
Skipping these checks is how homeowners end up with delayed leaks, airlocks, or a pump that runs nonstop from poor temperature calibration.

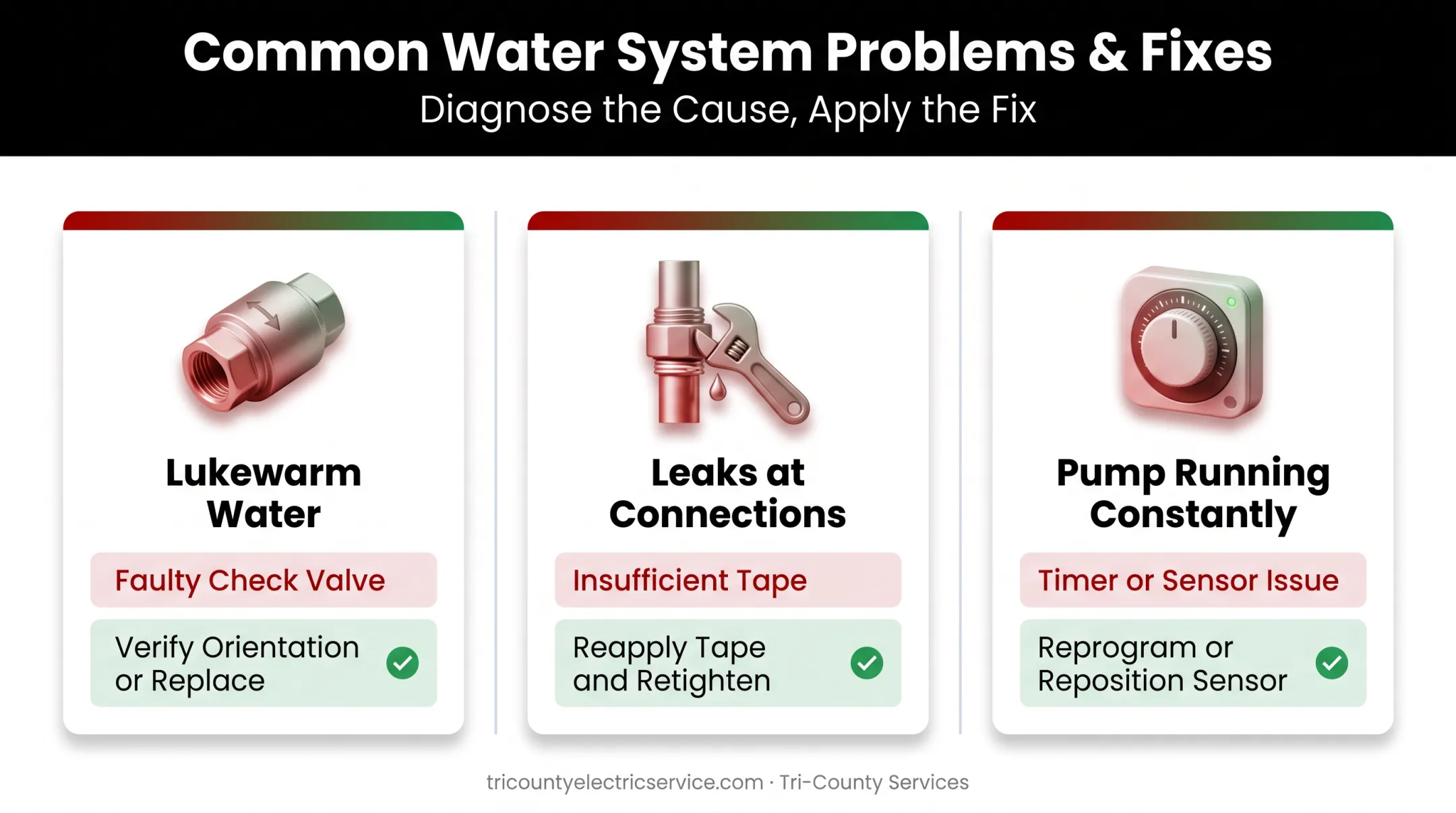

Common Installation Problems and Fixes
Three issues show up more than any others after a fresh install.
Lukewarm Water at the Tap
Problem: Water never reaches full hot temperature.
Likely cause: A missing or malfunctioning check valve is letting hot and cold water cross-mix.
Fix: Verify the valve orientation matches the manufacturer's flow arrows, and replace any faulty check valve.
Leaks at Pipe Connections
Problem: Dripping at threaded joints once water flow is restored.
Likely cause: Not enough PTFE tape, or a fitting that wasn't tightened properly.
Fix: Shut off the water, reapply tape, retighten with a wrench, then retest before walking away.
Pump Running Constantly or Not at All
Problem: The pump never shuts off, or it never activates on demand.
Likely cause: Incorrect timer programming or a faulty temperature sensor.
Fix: Reprogram the timer for peak-use hours. Confirm the sensor sits near the farthest fixture, not buried somewhere it can't get an accurate reading.
Pro Tips for Installing a Hot Water Recirculation Pump Effectively
A few things separate a good installation from one that just barely works:
- Insulate accessible hot water lines with foam sleeves right after installation. Uninsulated lines can lose 16-23% of heating energy; insulation can cut water-heating energy use by 4-5% yearly (DOE Building America Solution Center).
- Confirm water heater compatibility before buying a pump. Tankless systems often need different components entirely.
- Bring in a licensed electrician for hardwired connections or code questions. Certified pros at Tri-County Electric Service handle these hookups daily—call if wiring is exposed, a breaker keeps tripping, or GFCI protection is unclear.
- Document the installation date and settings for warranty claims and future troubleshooting.
Conclusion
How well you install a recirculation pump directly affects hot water delivery speed, your energy bill, and how long the pump lasts. Take the prep work seriously, follow electrical safety practices, and don't skip leak testing.
If any part of the job involves wiring you're unsure about, or code compliance questions you can't answer, bring in a licensed electrician. Tri-County Services handles residential electrical work for installs like these across Northeast Ohio, Southwestern Ohio, and Northern Kentucky. That visit costs far less than a shock hazard or a leak you don't catch until it causes real damage.
Frequently Asked Questions
How much does it cost to install a hot water recirculation pump?
DIY installation may cost only the price of the kit itself, roughly $150 to $400 for parts. Professional installation typically runs $400 to $1,300, with a national average around $750, depending on complexity.
Where should a hot water recirculation pump be installed?
The pump mounts on the water heater's hot water outlet. The sensor or crossover valve goes at the fixture farthest from the heater, wherever hot water takes longest to arrive.
Can you add a hot water recirculation pump to an existing system?
Most tank-style water heaters can be retrofitted without issue. Tankless systems usually need special equipment, and many recirculation pump models simply aren't compatible with them.
Does a hot water recirculation pump need a return line?
A dedicated return line is ideal, but not required. Crossover valves let the system use your existing cold water line as the return path instead.
What is a hot water recirculation loop?
It's the continuous path hot water travels: from the heater, through the supply pipes, to the fixture, and back again for reheating, either through a dedicated line or the cold water line.
Are recirculation pumps easy for homeowners to install safely?
Some kits are DIY-friendly on the plumbing side. However, electrical connections and code compliance often make professional help the safer route, especially for hardwired setups.
