Some devices are genuinely DIY-friendly: smart plugs, bulbs, battery sensors. Others—wired switches, thermostats, smart panels—touch your home's electrical system and typically need a licensed electrician. Mixing up which is which causes most of the headaches homeowners run into: code violations, fire risk, dead warranties, and networks that fall apart within weeks.
This guide walks through planning, protocols, step-by-step installation, and validation, so your setup works the first time.
Key Takeaways
- Plug-in devices are DIY; hardwired switches and panels need a licensed electrician
- Most post-install failures come from Wi-Fi setup, not bad hardware
- Confirm Matter, Thread, Zigbee, or Z-Wave compatibility before you buy
- Phase installs: hub first, then plugs/switches, then security and climate
- Test each device live and put IoT gear on a separate network
Installation Guide for Smart Homes
Installation generally follows five stages: planning and ecosystem selection, device placement, electrical/network integration, app configuration, and validation. Skip a stage and you'll likely redo work later.
Timeline expectations:
- DIY hub and plug setup: an afternoon
- Wired switches or panel work: schedule a licensed electrician; often a full day
Prerequisites and Safety Considerations
Before buying anything, check three things:
- Site readiness — reliable internet coverage throughout the house, enough electrical panel capacity, and wiring in good condition
- Compatibility — confirm each device supports your chosen ecosystem (Google, Amazon, Apple) and protocol (Matter, Zigbee, Z-Wave, Thread)
- Code compliance — the National Electrical Code is enforced locally, not by one nationwide licensing rule
Some jurisdictions exempt like-for-like replacements from permits; others don't, especially once wiring is added, moved, or removed. Arlington County's electrical permit guidance shows how specific these rules get. A smart switch retrofit can look like a simple swap and still cross a local permit line—confirm requirements with your building department before you open the box.
Never wire a smart switch, thermostat, or panel-connected device without shutting off power and confirming circuit compatibility. When the job touches hardwired devices, panel upgrades, or EV charger circuits, Tri-County Services' licensed electricians handle installation and code compliance so you are not guessing on a live system.
Tools and Parts Required
Essential:
- Smart hub (Echo, Google Nest, Apple HomePod, or Home Assistant)
- Wi-Fi router or mesh system
- Voltage tester
- Basic electrician tools for hardwired devices
Optional:
- Ethernet cable for a wired hub connection
- Wi-Fi analyzer app to check signal strength room by room
Skip the hub entirely if you're starting with battery-powered or Bluetooth-only devices for a basic setup.

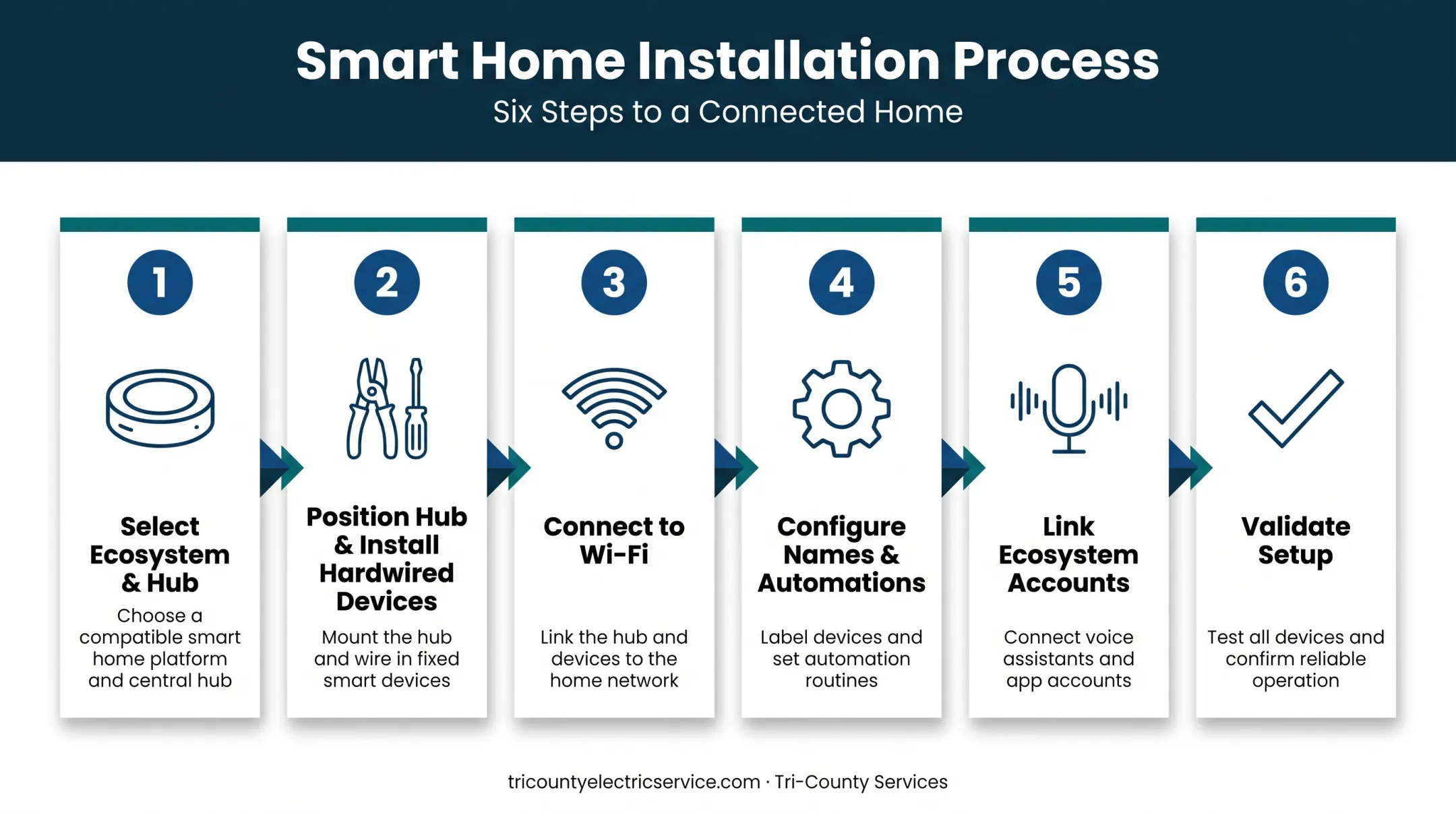

How to Install Smart Home Devices (Step-by-Step)
Skipping network planning is the single biggest cause of recurring connectivity failures. Follow these steps in order:
- Select your ecosystem and hub, then map out which rooms need which devices
- Position the hub centrally; have hardwired devices—switches, thermostats—installed by an electrician if they touch home wiring
- Connect devices to Wi-Fi or the hub using the manufacturer's app pairing flow
- Configure names, rooms, and initial automations so voice commands and routines make sense later
- Link ecosystem accounts (Google Home, Alexa, Apple Home) for voice control across devices
- Validate the full setup — test every device, scene, and automation, then fix weak Wi-Fi spots or failed pairings before you depend on the system day to day

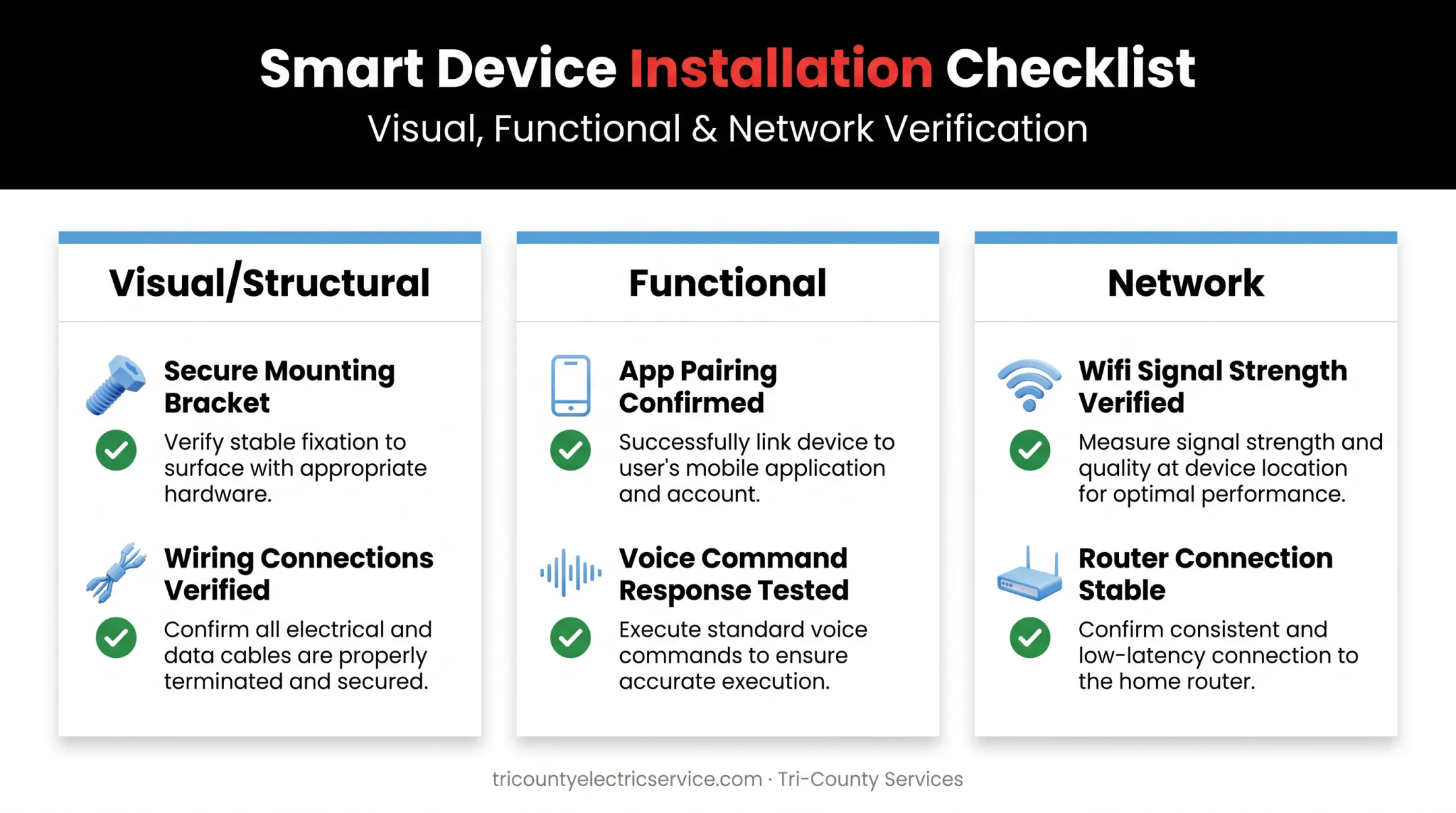

Post-Installation Checks and Validation
Don't call it done until you've verified it works. Skipping this step is why devices mysteriously drop offline weeks later or develop firmware conflicts nobody can trace.
Run through this checklist:
- Visual/structural — switches and panels securely mounted, wiring code-compliant
- Functional — every device responds via app and voice command; hub recognizes all devices
- Network — test Wi-Fi signal strength at each device's actual location, not next to the router
Network problems are common. Parks Associates found that 52% of DIY smart-home users reported setup or connectivity issues in 2025.
That figure covers setup and connectivity broadly, not weak signals alone. Still, focus your checks where they count: test from the device's final spot, power-cycle it, and trigger it a few times before you call the job finished.
If you want a second set of eyes on panel or wiring work, Tri-County Electric Service provides electrical safety inspections and code-correction services after installation.
Common Installation Problems and Fixes
Devices Won't Connect to Wi-Fi
Problem: Device fails pairing or randomly disconnects.
Likely cause: Many devices only support 2.4GHz networks, not 5GHz. Some accessories need a manual connection to the 2.4GHz band during setup.
Fix: Check your router settings and put the device on the 2.4GHz band before assuming the hardware is defective.
Ecosystem or App Conflicts
Problem: Device works fine in the manufacturer's app but won't show up in Google Home, Alexa, or Apple Home.
Likely cause: A missing linking step or a protocol mismatch.
Fix: Enable the required skill or manufacturer integration in your hub app, then relink the account if the device still doesn't appear.
Hardwired Device Malfunction After Install
Problem: Smart switch or thermostat won't power on, or it trips the breaker.
Likely cause: Incorrect wiring, an incompatible circuit, or insufficient neutral wire.
Fix: Stop troubleshooting in the app. Have a licensed electrician re-inspect the install—wiring faults are a safety issue, not a software glitch.
Pro Tips for Installing Smart Homes Effectively
A few habits separate a smooth smart-home install from one that fights you later:
- Set up a separate IoT or guest network for smart devices, isolating them from phones and computers for security.
- Roll out in phases (hub, then plugs/switches, then security and climate) rather than automating everything on day one.
- Hire a specialist for panel upgrades, whole-home wiring, or EV charger work. Tri-County Services is a Generac Certified and Tesla EV Charger Certified installer for backup power and charging.
- Document everything: device names, locations, and network settings, so troubleshooting or a future home sale doesn’t start from scratch.
Conclusion
How you install a smart home determines whether it stays reliable or turns into a recurring headache. Plan your ecosystem first and DIY the simple stuff.
Bring in a licensed electrician like Tri-County Services for anything touching your home's wiring, panel, or EV charging setup. Serving Northeast Ohio, Southwestern Ohio, and Northern Kentucky, Tri-County offers free estimates and upfront pricing on electrical work, including smart-home wiring, panel upgrades, and EV charger installation.
Frequently Asked Questions
How much does a smart home installation cost?
Basic automation setups start around $300, with complete systems running $2,000–$6,000 (roughly $4,000 on average), according to Fixr's 2025 cost data. Hardwired work adds electrician labor on top of device costs.
What is a smart home installation?
It's the process of setting up connected devices—lighting, climate control, security, and more—so they can be controlled through a hub or app. Installation ranges from unboxing a smart plug to wiring a smart panel.
What wiring is required for a smart home?
Plug-in and battery-powered devices need no wiring at all. Switches, panels, and EV chargers require licensed electrical work, since they connect directly to your home's power system.
What are the top home automation systems?
Google Home, Amazon Alexa, Apple HomeKit, and Home Assistant are the leading ecosystems homeowners choose from, each with different device compatibility and setup requirements.
What are the best smart home devices to set up first?
Start with a hub, a few smart plugs or switches, and a smart thermostat. These give you the most functional payoff before moving into cameras, locks, or full automation routines.
Should smart home devices be on a separate network?
Yes. A separate IoT or guest network keeps smart devices isolated from your personal devices, improving security and reducing congestion on your main household network.
